Overview:

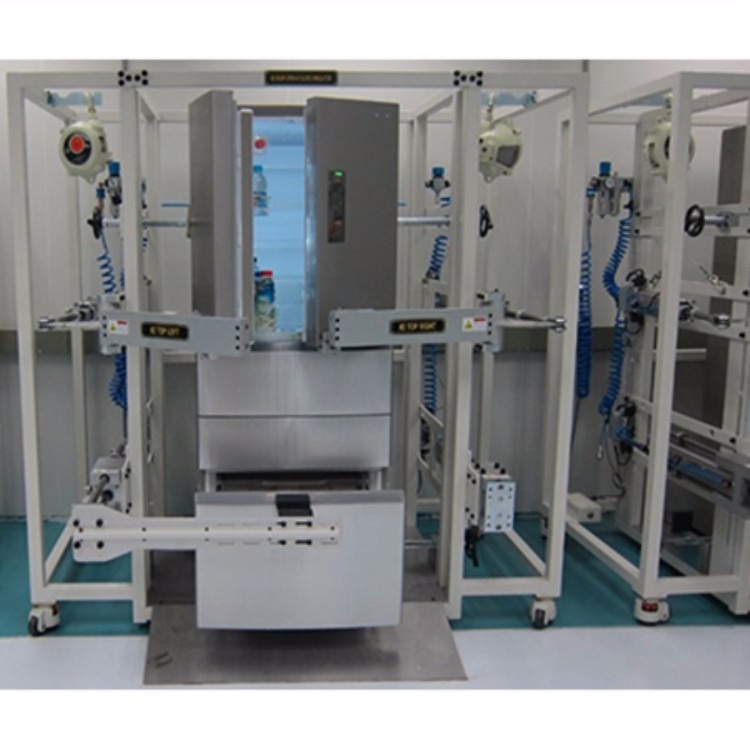

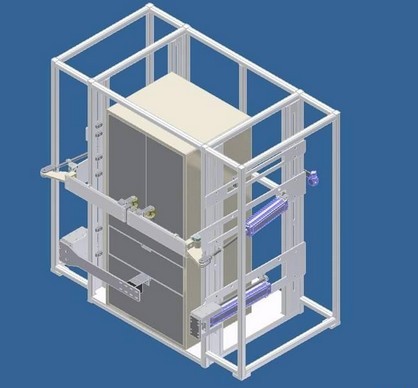

   Door opening and closing life testing machine is mainly used to test the durability test of door opening and closing, to detect the overall reliability of the door, and it is suitable for opening/closing capacity test of cabinet doors. The stepper motor is used as the driving source to drive the push rod to make a reciprocating movement to complete the reciprocating action of "opening and closing" the cabinet door. The PLC control action is used to open and close the door and simulate the action of opening and closing the door by hand. Strong versatility, simple operation, convenient control and low failure rate.

The main technical parameters

1. Equipment station: single station

2. Touch screen: 7-inch color touch screen, one

3. PLC: Japan Mitsubishi, data power failure memory function;

4. Motor: stepper + driver

5. Opening and closing speed: opening/closing speed 1.5m/s±50% adjustable

6. Test angle: maximum 1300;

7. Opening and closing speed: 0-10 times/minute adjustable,

8. Test force of door opening and closing manipulator: the maximum opening force can be adjusted from 10N to 200N

9. Counting/timing: 999999 (can be preset)

10. Door opening method: left and right door opening/front and back pull method

11. Overall dimensions of the test equipment: about 900X450X1700 (height) MM

12. Equipment power supply: 220V 1.5KW
