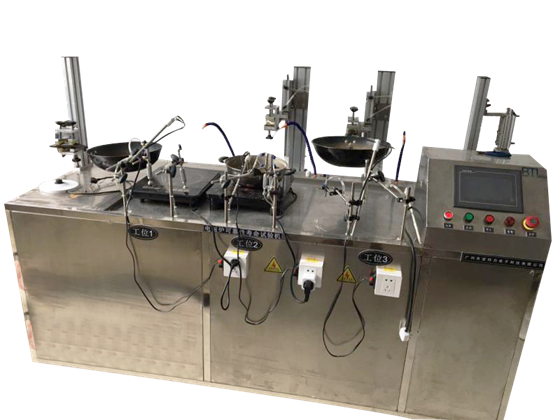

Induction cooker machine performance test bench

Product Mode: Fixed mode of products: Test Speed: Number of tests: Equipment size: Description: The induction cooker life testing machine is made according to the requirements of GB4706.52-2001. Adopt PLC main control, cooperate with touch screen to complete the display and monitoring of various data. Each station can be individually selected switch, or individually activated. The detection function includes the aging test of the whole machine, the cutting test of the moving magnetic field, and the durability test of the handle. This equipment is used to test the comprehensive service life of induction cooker products. It can test multiple products. The operating environment is 0-60 ℃, and the humidity is less than 95%. In the circuit design, the control circuit and the power supply circuit of the induction cooker are completely independent and separated to eliminate possible interference and improve the reliability of the system.

Main technical parameters

1. Control system: PLC+7-inch touch screen


2. Transmission system: pneumatic + mechanical transmission


3. Detection station: 3-5 stations


4. Fixture: X, Y, Z three-dimensional adjustable


5. Test stroke: more than 100mm or customized


6. Test speed: 5--850mm/s setting can be adjusted


7. The number of tests: any value can be preset


8. Power supply: 220V 2.5KW
