Overview:

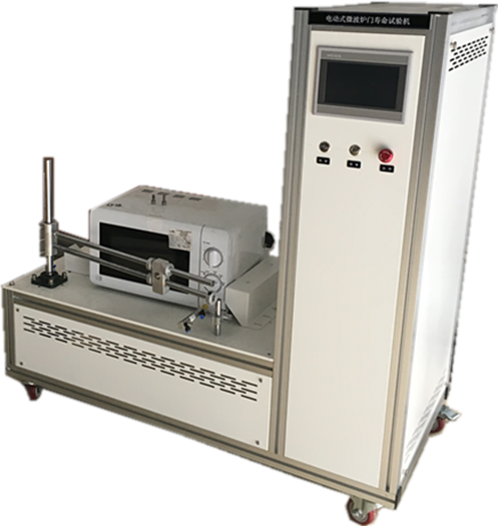

   The door opening and closing tester is mainly used for the door hinge opening and closing durability test of home appliances, to detect the quality reliability of the door body, and is suitable for the opening/closing ability test of the cabinet door. As the driving source, the stepping motor drives the push rod to make a reciprocating movement to complete the reciprocating action of "opening and closing" the cabinet door. Through PLC control, the product can be tested up and down to open the door. With flexible fixtures, it can meet the door opening and closing test of a variety of small household appliances. It has strong versatility, simple operation, convenient control and low failure rate.

The main technical parameters

1. Inspection station: single station

2. Touch screen: 7-inch color touch screen,

3. PLC: Mitsubishi of Japan;

4. Motor: stepper + driver

5. Opening and closing speed: opening/closing speed 1.5m/s±50% adjustable

7. Opening and closing speed: door opening and closing angle 0-1300 0-10 times/min adjustable,

8. Test force value of door opening and closing manipulator: 10N～200N adjustment

9. Counting/timing: 999999S

10. Test method: open the door left and right / open the door up and down

11. Overall dimensions of test equipment: 1200X550X1280 (height) MM

12. Equipment power supply: 220V 1.5KW
