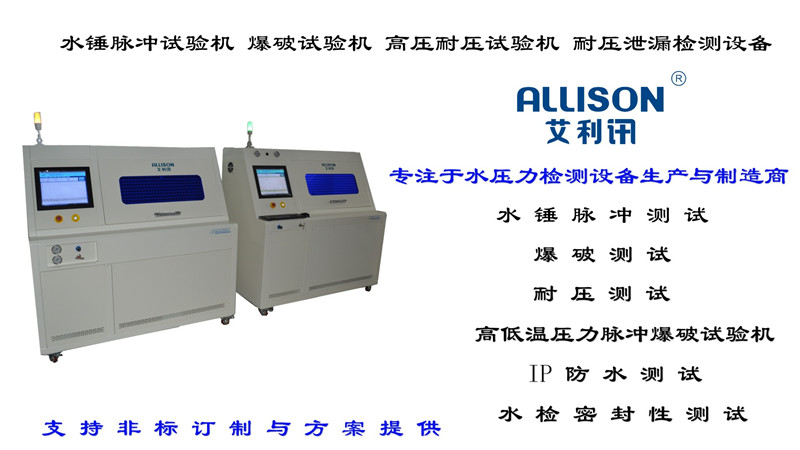

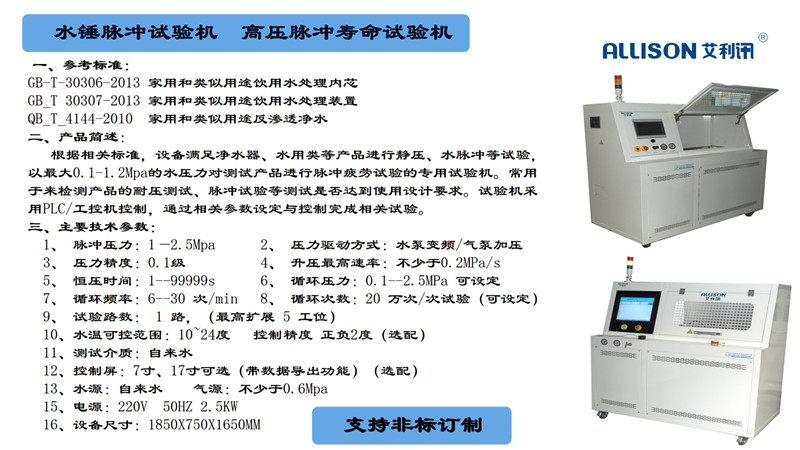

Water hammer pulse test equipment

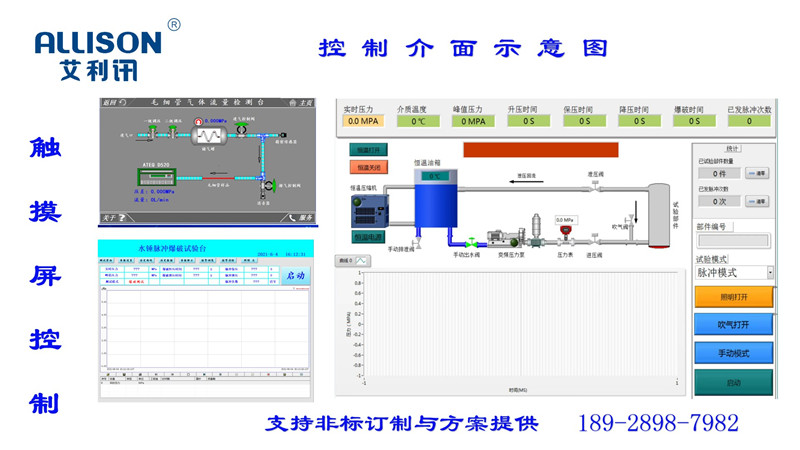

Product Mode: Fixed mode of products: Test Speed: Number of tests: Equipment size: Description: According to relevant standards, the equipment meets the static pressure resistance test of water purifier, and the special testing machine for pressure pulse fatigue test of maximum 0.1-1.2Mpa. It is used to test whether the filter core of the water dispenser, the pressure resistance of the water dispenser, and the water purifier meet the design requirements. The testing machine is controlled by PLC/industrial personal computer, and relevant tests are completed through the setting and control of relevant parameters. Guideline: GB-T-30306-2013 Drinking water treatment core for household and similar purposes GB_T 30307-2013 Household and similar drinking water treatment devices QB_T_4144-2010 Reverse osmosis water purification for household and similar purposes

Main technical parameters

1. Pulse pressure: 1—1.6Mpa


   2. Bursting pressure: 1--20 Mpa


   3. Pressure accuracy: ±1%


   4. The highest rate of boost: no more than 0.2MPa/s


   5. Constant pressure time: 1--99999s


   6. Circulating pressure: 0---1.2MPa


   7. Cycle frequency: 6--45 times/min


   8. Cycle times: 100,000 times per test (can be set)


   9. Number of test paths: 1 path for static pressure blasting, 1 path for circulating pressure (maximum expansion of 5 stations)


   10. Water temperature controllable range: 13 degrees to 24 degrees, control accuracy plus or minus 2 degrees


   11. 100L automatic water replenishment


   12. Equipment dimensions: 1700X850X1750 high


   13. Water source: tap water gas source: 0.6Mpa


   14. Power supply: 220V 50HZ 1.5KW


   15. Equipment size: 1650X650X1680MM
