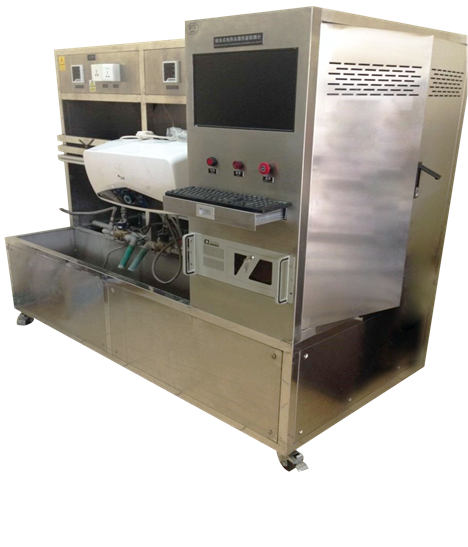

The test bench is mainly used for quick-heating electric water heaters in the water, power, low water pressure start test, high pressure test, water flow, outlet temperature, voltage, current, power, safety inspection, inlet and outlet temperature test, and can judge the product Qualified or unqualified, there will be alarm prompts and related data recorded;

   The equipment adopts PLC industrial computer control mode, which can carry out project programming operation, automatic detection, data tracking and collection, conclusion classification, automatic storage of detection data, and data export through USB port.

1. Safety withstand voltage to ground resistance test (withstand voltage 0-3500V adjustable, accuracy ±1%)

2. Water pressure resistance (adjustable from 0-1.5MPa, accuracy ±1%)

3. Start flow test (adjustable from 0-5L/min, accuracy ±2%)

4. Electrical parameter detection: current, power, frequency, voltage

5. Machine power supply: 220V 50Hz 5.0kw

6. Station: 2-10 stations

7. Control method: industrial computer + PLC + 17-inch display

8. Equipment size: 2200 X 1000 X 1650 Unit: MM
