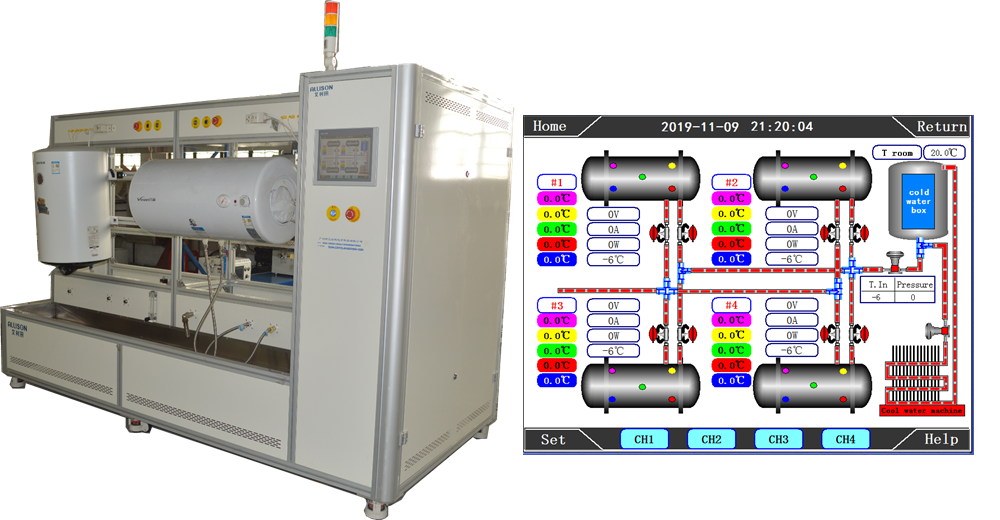

Storage water heater performance testing equipment Water heater energy efficiency test

Product Mode： Fixed mode of products： Test Speed： Number of tests： Equipment size： Description: Mainly for the performance indicators and life test of water storage electric water heater; the test items include performance test, energy efficiency test, pressure test, flow test, temperature test, power consumption test, etc. It meets the requirements of Chapter 18 of GB4706.1 and GB 4706.12-2006 Special requirements for safe storage water heaters for household and similar electrical appliances. GB 21519-2008 Energy efficiency limit value and energy efficiency grade requirements of storage-type electric water heaters, using PLC industrial computer control mode, can carry out project programming operation, automatic process detection, data tracking and collection, conclusion classification, automatic storage of test data, convenient for future Find, analyze, count and print. Relevant detection data is exported via USB, and the device supports 4G/5G remote control

Main technical parameters

1. Number of stations: 2---10 stations are optional, and each station is independently monitored.


2. There are two water supply pipelines: one is the tap water pipeline and the other is the booster pipeline.


3. Use stainless steel 304 pipeline


4. Temperature range: 5--85℃ Accuracy: 0.25 class


5. Control method: industrial computer main control, remote collaboration function, 17-inch touch screen


6. Pressure parameters: range 0-0.7Mpa, minimum scale 0.01Mpa.


7. Flow parameters: range 0.1-100L/min


8. Equipment power supply 220V, 30KVA / optional external frequency conversion power supply


9. Equipment size: 2200 X 1200 X 1650 Unit: MM


10. Other functions: 4G/5G remote control, detection data USB export
