A: Multi-mode selection such as dry-burning mode, button mode, plug-in mode, circulating water boiling mode, open and close mode, etc.

B: The equipment has the functions of test end, fault alarm, counting, data recording, etc.

C: Touch screen man-machine dialogue interface, using Mitsubishi PLC control, independent monitoring of multiple stations, the operating software is simple to use and easy to operate;

Technical parameters and use environment:

  (1), control power supply voltage: AC220V power: 4.5KW

  (2) Inspection stations: 2-20 (optional)

  (3) Test times, cycle, etc.: all can be set by PLC

  (4) Mechanical kettle/electronic kettle/healthy kettle (optional)

  (5) Use environment temperature: +5～+40℃, use environment humidity: 20%～90%RH

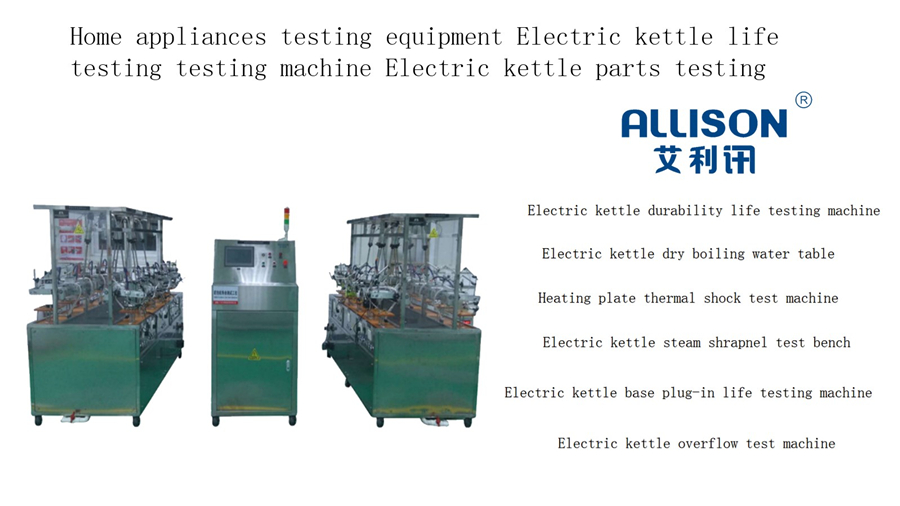

  (6) Application: electronic kettle, mechanical kettle, health kettle

(7) Equipment size: 2200 X 1250 X 1650 Unit: MM
