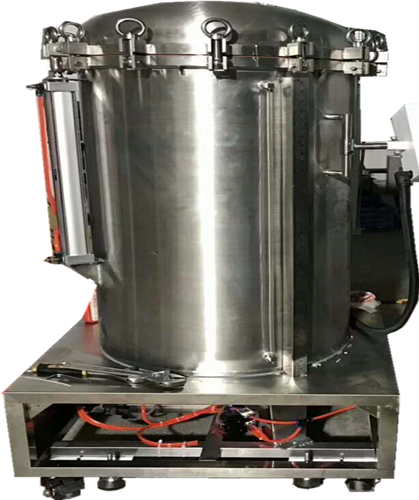

1. Dimensions inside the box: D800×H1000mm. (The size is designed according to customer samples)

2. Equipment structure: 304 stainless steel water tank, there is a scaled plexiglass window in front of the water tank.

3. Liquid level control: float switch

4. Length of ruler: 1000mm, precision 1mm.

5. The box body is reinforced with stainless steel square tube.

6. Pressure adjustment range: 0～1.5Mpa.

7. Pressurization system: stainless steel water pump + frequency converter.

8. The accuracy of the pressure gauge is 0.25, and the range is 1.6Mpa.

9. Test time: 0-999min.

10. Maximum ultimate pressure: 1.6Mpa.

11. Pressure protection: pressure switch protection.

12. Control mode: mechanical / Japan Mitsubishi PLC control

13. Power supply: AC220V 50Hz 2.5KW
