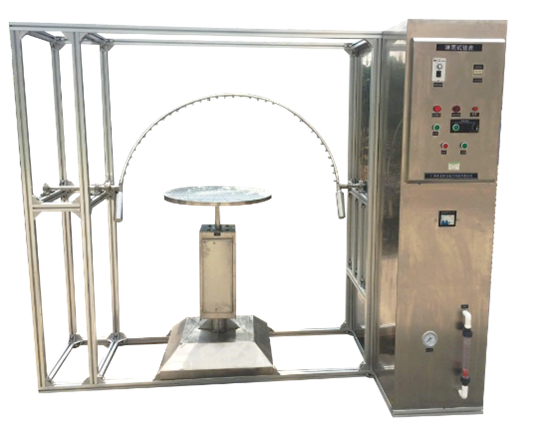

1. Model: QX-P3-4A;

2. Swing tube half warp: 400/600/800/1000/1200/1400/1600

3. Nozzle hole: Φ0.4; distance between two holes: 50mm;

4. Swing tube swing: ±0--170° adjustable

5. The outer diameter of the pendulum tube: Φ20mm (stainless steel);

6. The height of the swing tube: the center of the swing tube is 1.4m from the ground;

7. Rain water pressure: 50--300kpa (adjustable);

8. Water flow: can be displayed

9. Test bench: turntable 300-500mm; speed: 1～17r/min

10. Control method: mechanical/Mitsubishi PLC control

11. Power supply voltage: AC220V 50Hz 3.5KW

12. Equipment size: 2000 X 1200 X 1650 Unit: MM
