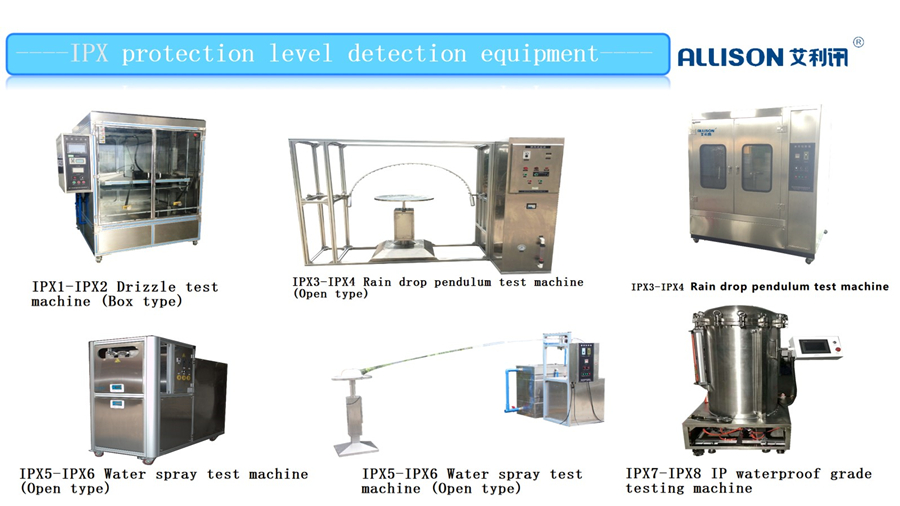

IPX1-IPX2 Drop Rain Test Chamber （Open type），This set of equipment can meet the IPX1 and IPX2 standards stipulated in GB4208 IEC60529 GB7000.1 "Enclosure Protection Level"; this product is mainly suitable for waterproof performance testing and IPX1,2 Waterproof rating test.

Drip tank size: 1000×1000×150; (length×width×height mm)

Precipitation: 1～5mm/min; (±0.5mm, adjustable)

Dripping area: 1.0 square meters

Drip aperture: Φ0.4mm; distance between drip holes: 20×20mm (25X25)

Test bench: 500×500mm (L×W)

Test bench speed: 0-17r/min (adjustable)

Adjustable height of test bench turntable

Drip tank height: (adjustable)

Control method: mechanical/Mitsubishi PLC control

Turntable motor: stepper motor, meet IPX2 rotation 90° every 2.5min

Power supply: 220V 4.5kw

IPX1-IPX2 Drop Rain Test Chamber （Open type）

Equipment size: 1200 X 1250 X 2050 Unit: MM
