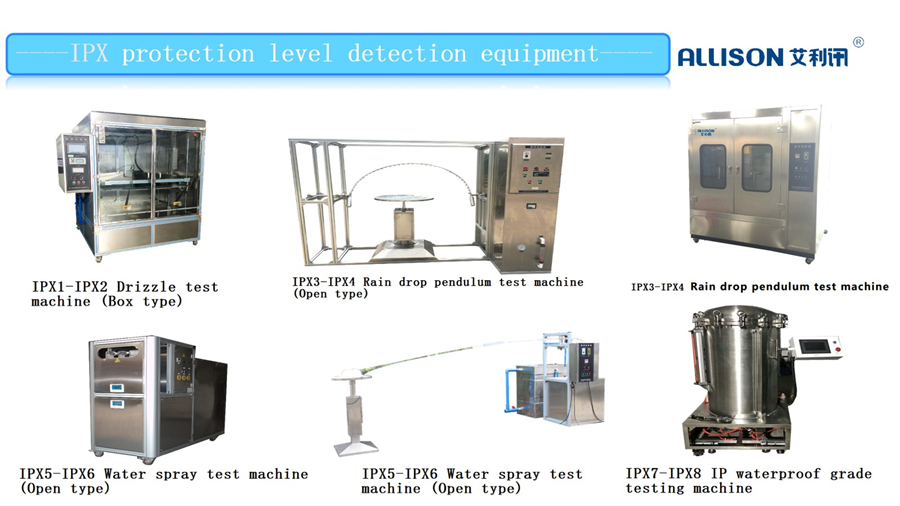

IPX1-IPX2 Raindrop test equipment, this equipment can meet the IPX1, IPX2 standards specified in GB4208 IEC60529 GB7000.1 "Protection level of enclosure". This product is mainly applicable to electronic products such as communication products, automotive parts, outdoor lighting and signal devices for waterproof performance test and IPX1, 2 waterproof grade test.

This set of equipment can meet the IPX1 and IPX2 standards specified in GB4208 IEC60529 GB7000.1 "Enclosure Protection Level".

This product is mainly suitable for waterproof performance test and IPX1, 2 waterproof level test of electronic products such as communication products, auto parts, outdoor lighting and signal devices.

Drip tank size: 1000×1000×100; (length×width×height mm)

Precipitation: 1～5mm/min; (±0.5mm, adjustable)

Dripping area: 1 square meter

Drip aperture: Φ0.4mm; distance between drip holes: 20×20mm (25X25)

Test bench: 500×500mm (L×W)

Test bench speed: 0-17r/min adjustable)

Test bed turntable height/angle (adjustable)

Drip tank height: (adjustable)

Control method: mechanical/Mitsubishi PLC control

Turntable motor: stepper motor

Power supply: 220V 3.5kw
