Auto casting sealing test equipment

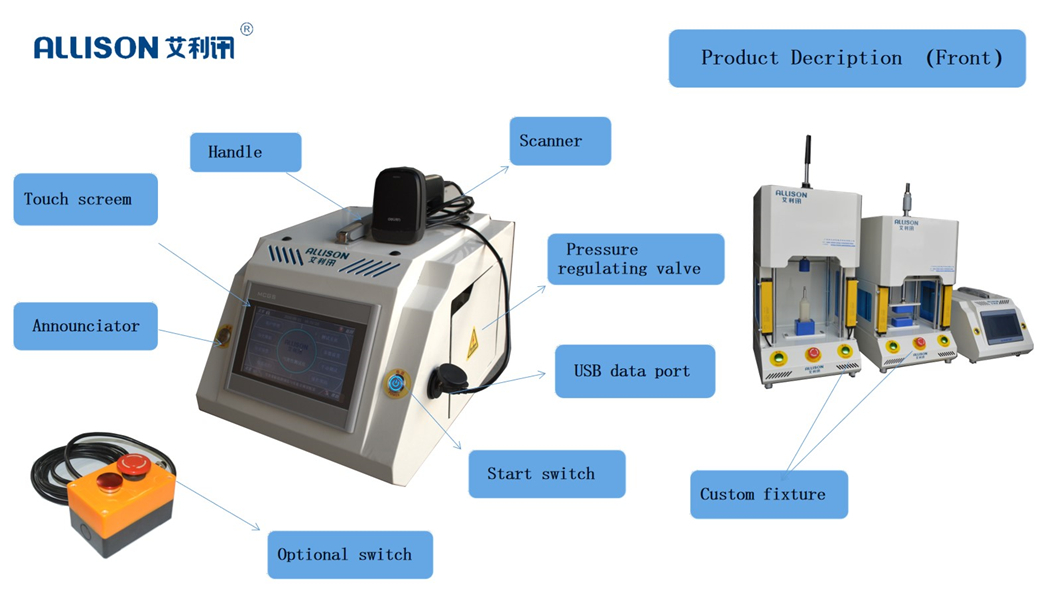

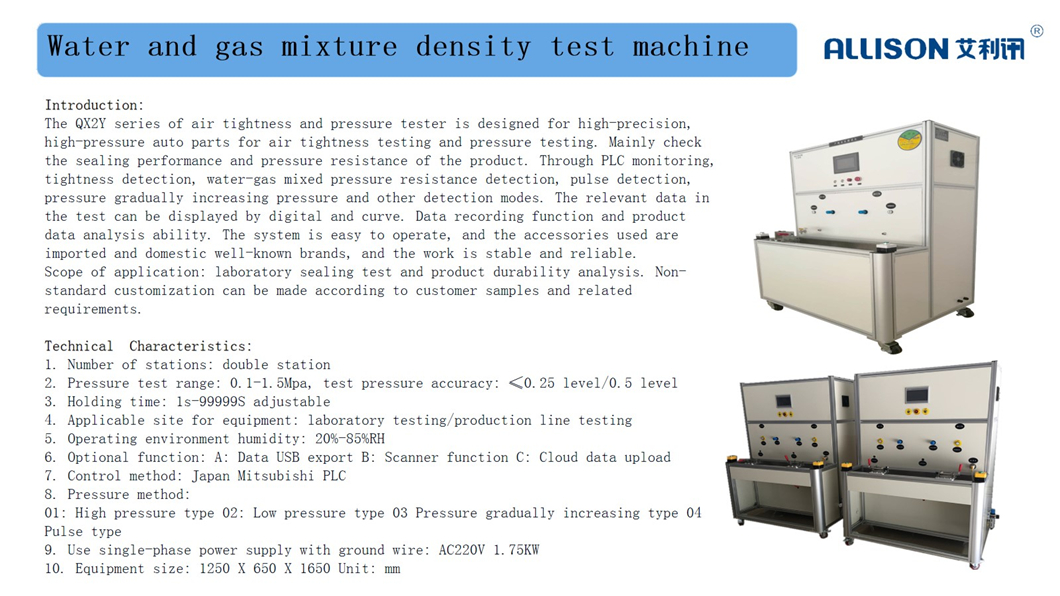

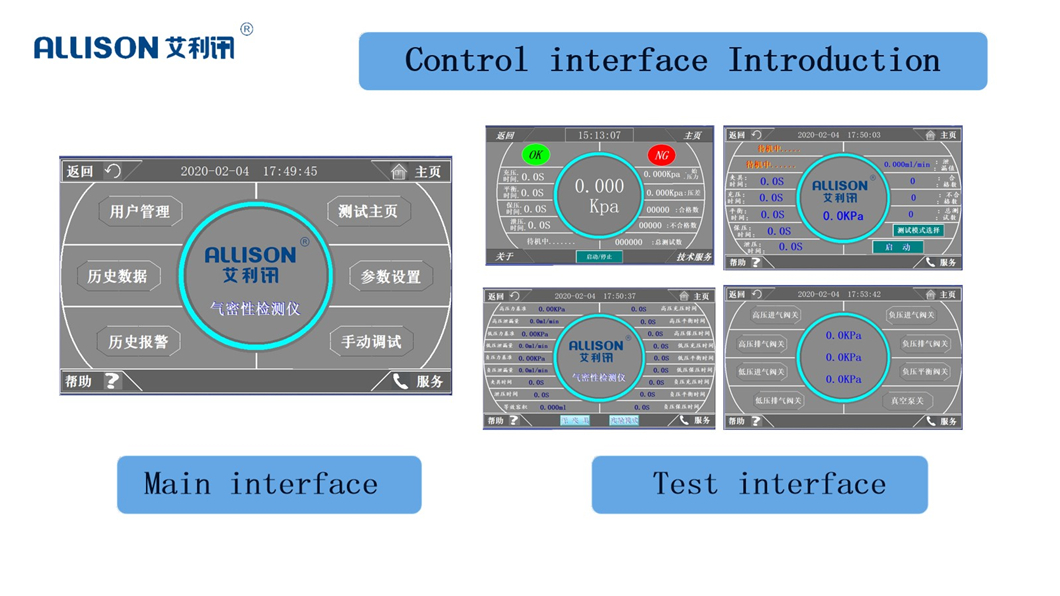

Product Mode: Fixed mode of products: Test Speed: Number of tests: Equipment size: Description: Auto casting sealing test equipmentQX-2Y series air tightness and pressure test instrument is aimed at high precision, high pressure accessories, complete machine, air tightness test and pressure test. The testing platform adopts water + gas test method to test the tested products. Pressure detection and pressure holding are soaking tests.Auto casting sealing test equipment The testing equipment is controlled by PLC, and the relevant data in the test can be displayed on the 7-inch touch screen by digital and curve display. With data recording function and product data analysis ability. The operation of the system is simple, and the accessories used are imported and domestic well-known brands, and the work is stable and reliable. Scope of application: precision accessories, die-casting accessories, auto parts accessories, home appliance industry, etc. Commonly used for production line tightness detection and laboratory test development and use

Main technical parameters

Air tightness detector (high pressure precision) Die casting leak detector Air tightness leak detector Air tightness comprehensive detector

1. Detection station: double station independent detection

2. Pressure test range: 0.1-1.5Mpa,

3. Test pressure accuracy: 0.1/0.2

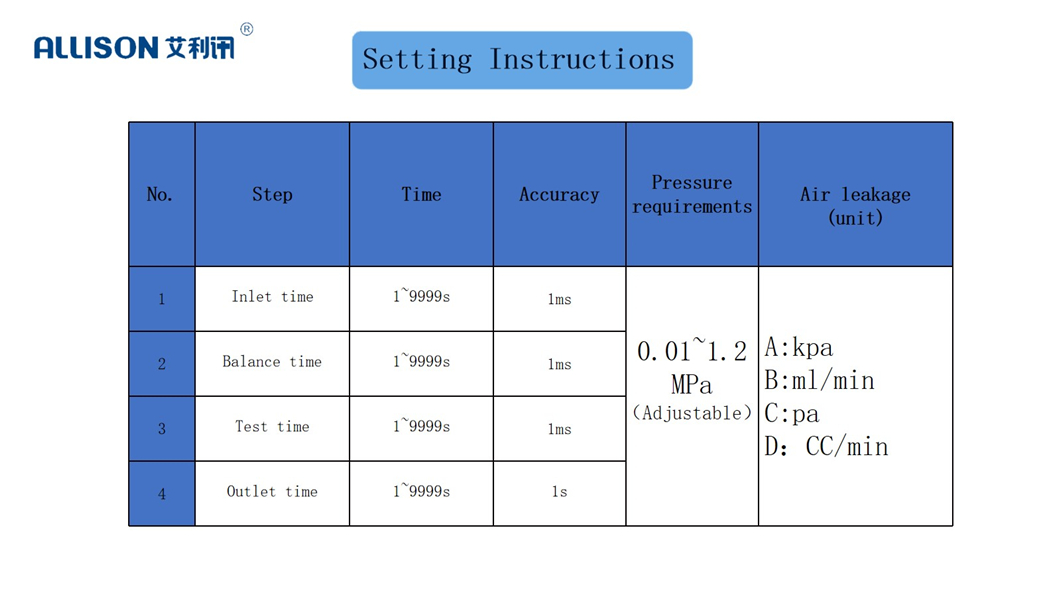

3. Pressure charging, maintaining pressure and pressure releasing time: 1s-9999S adjustable

4. Applicable sites for equipment: laboratory testing/production line testing

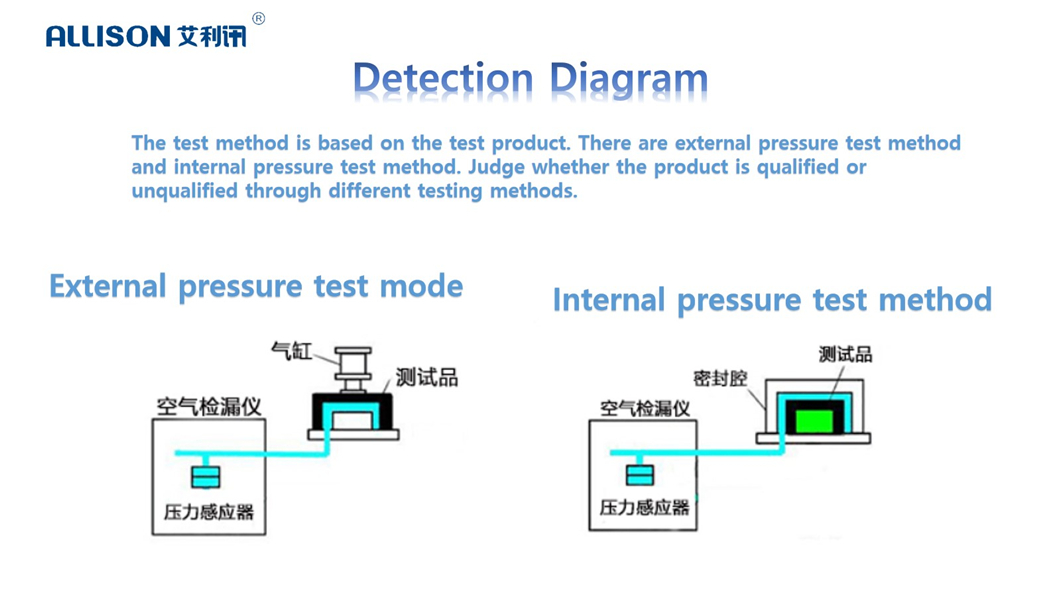

5. Detection mode: gas tightness detection + soaking water detection method

6. Optional functions: A: Data USB export B: Scanner function C: Cloud data upload

7. Control method: Japan Mitsubishi PLC/industrial computer control

8. Pressurization method: 01: high pressure type 02: low pressure type

9. Use single-phase power supply with ground wire: AC220V±10%, 50Hz 1.75KW

10. Equipment size: 850 X 650 X 1650 Unit: MM


37543b06720f422be002e998f8ceed88.jpg44a79eb4c1b76c1daf024b8ef052c2ea.jpge056aa742d9620b6e472399a2766a424.jpg018e56b23ae24fc74b9eac5a45c352b9.jpgc941b69283c35353acc33de1df23f913.jpg7b8230fd64df5bfbceb5c34307cd7229.jpg4ebdb665e227dbfd408ad0bd20671fd8.jpg73a7fe81f263b2918d9fc0ed1f3956fc.jpgae1b5cbc7bd1df8b369c9e6df4531992.jpgbf9370fbcea541d239025cb2e282ce7b.jpg222ac0cd46062f85ec3aa1d24363f5ef.jpgd5609cddce0e33a9c0f06e7e9ee7bdae.jpg1378af356a7211c082800c84f043abf4.jpg7ad9c602cfb2cc280a7b9127f03d1a7a.jpg08018f97a8548b475a98821fd5a34b79.jpg76c5102b43b258568b1dcc14898c8e8a.jpg80c6d12da9f426d790a0e2f0f6d135cf.jpgafedcb378d050913757922c30c5b58f9.jpg46879ddf42a7dfc477576a78310d36c7.jpg
