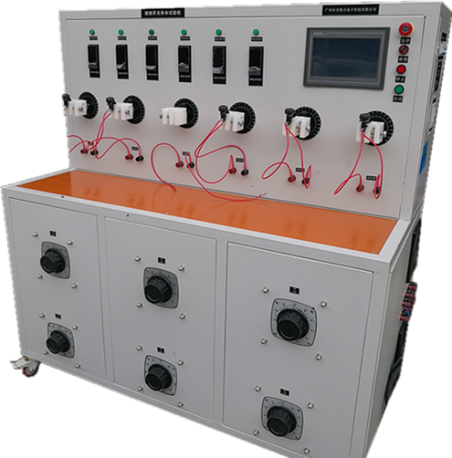

1. Test station: 2-6 stations (optional) Test sample: all kinds of dump switches

2. Control mode: PLC processor + touch panel

3. Drive mode: stepper motor + driver

4. Rotation method: one-way rotation or two-way rotation can be used, and can be adjusted arbitrarily in sections and angles

5. Rotation angle: -180-+180° Angle segment: 0-99999 segment

6. Test time: 0---999999 seconds/time

7. Load: 0-30A Test voltage: 0-300V adjustable

8. Detection parameters: voltage, current, power, on-off times, angle judgment

9. Detection method: current on and off

10. Power supply: 220V 50Hz 3.5KW

11. Equipment size: 1500 X 650 X 1650 unit MM
