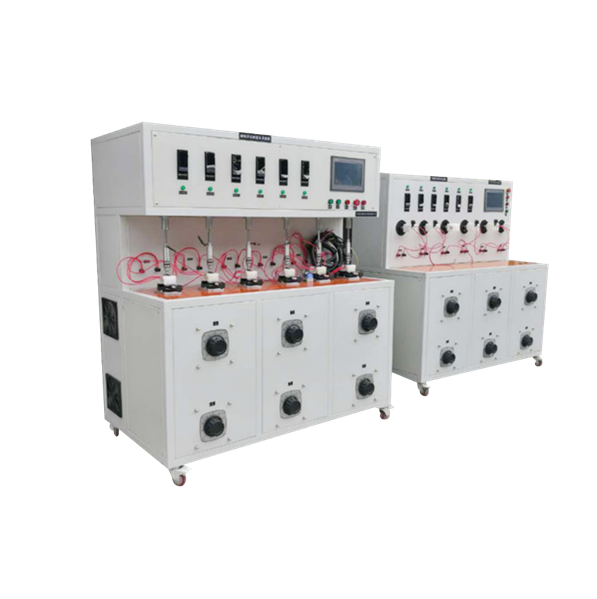

1. Test station: 2-10 stations (optional) Test object: all kinds of rotary switches

2. Control mode: PLC + touch screen display + special measurement and control program

3. Drive mode: servo drive

4. Sample fixture: according to the sample design,

5. Rotation mode: one-way rotation or two-way rotation can be

6. Rotation angle: 0---720° adjustable

7. Angle segment: 0---100 segments

8. Residence time: 0～999999 seconds/time

9. Load: 0-30A Test voltage: 0-300V adjustable

10. Detection parameters: voltage, current, power, angle, times

11. Equipment size: 1500 X 650 X 1650 Unit: MM

12. Power supply: 220V 50Hz 3.5KW
