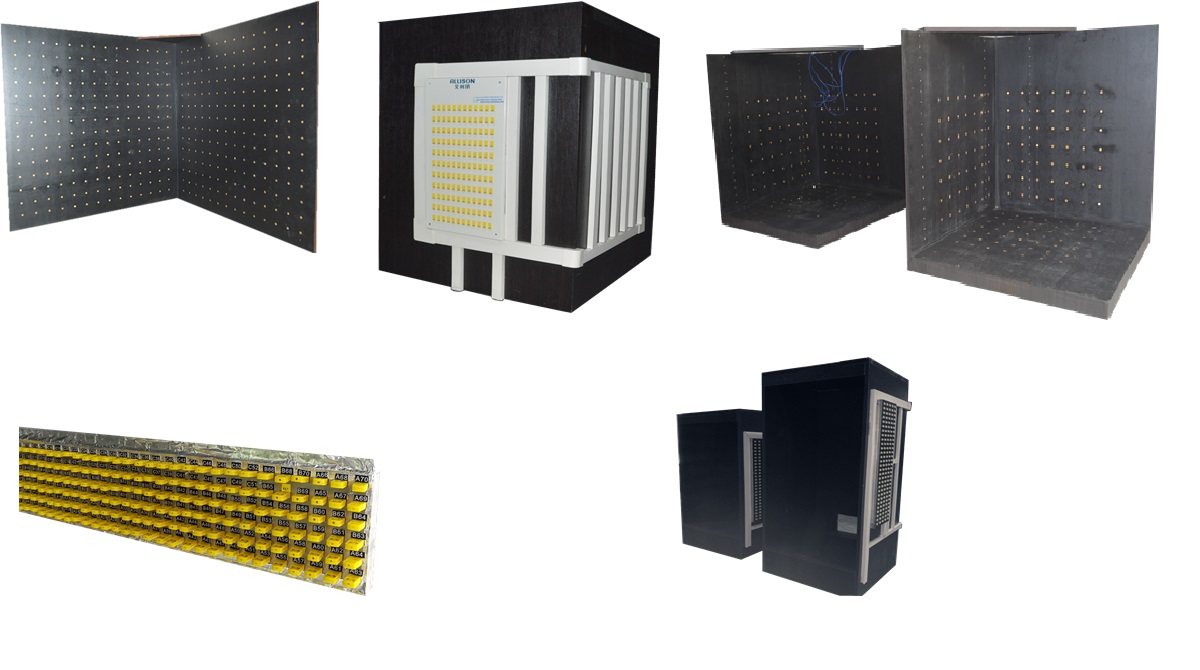

1. Size: 600X600X1000mm, 800X800X1000mm (or customized)

2. Thermocouple: thermocouple with diameter less than 0.3mm, K type T type J type

3. Thermocouple layout: all lead out on a wiring block (or optional thermocouple Plug and socket)

4. Temperature measuring copper sheet: 15mm in diameter, 1mm thick brass sheet

5. Number of temperature measuring points: 20, 32, 48 (or customized)

6. Temperature measuring point layout: 100X100mm or 76X76mm square ( Or according to other test requirements)

7. Plywood: fireproof board with a thickness of about 20mm, flame retardant matt black paint on the front, and gray film board on the back.

8. Movable part: 4 movable bottom wheels can be installed at the bottom, total height about 100mm
