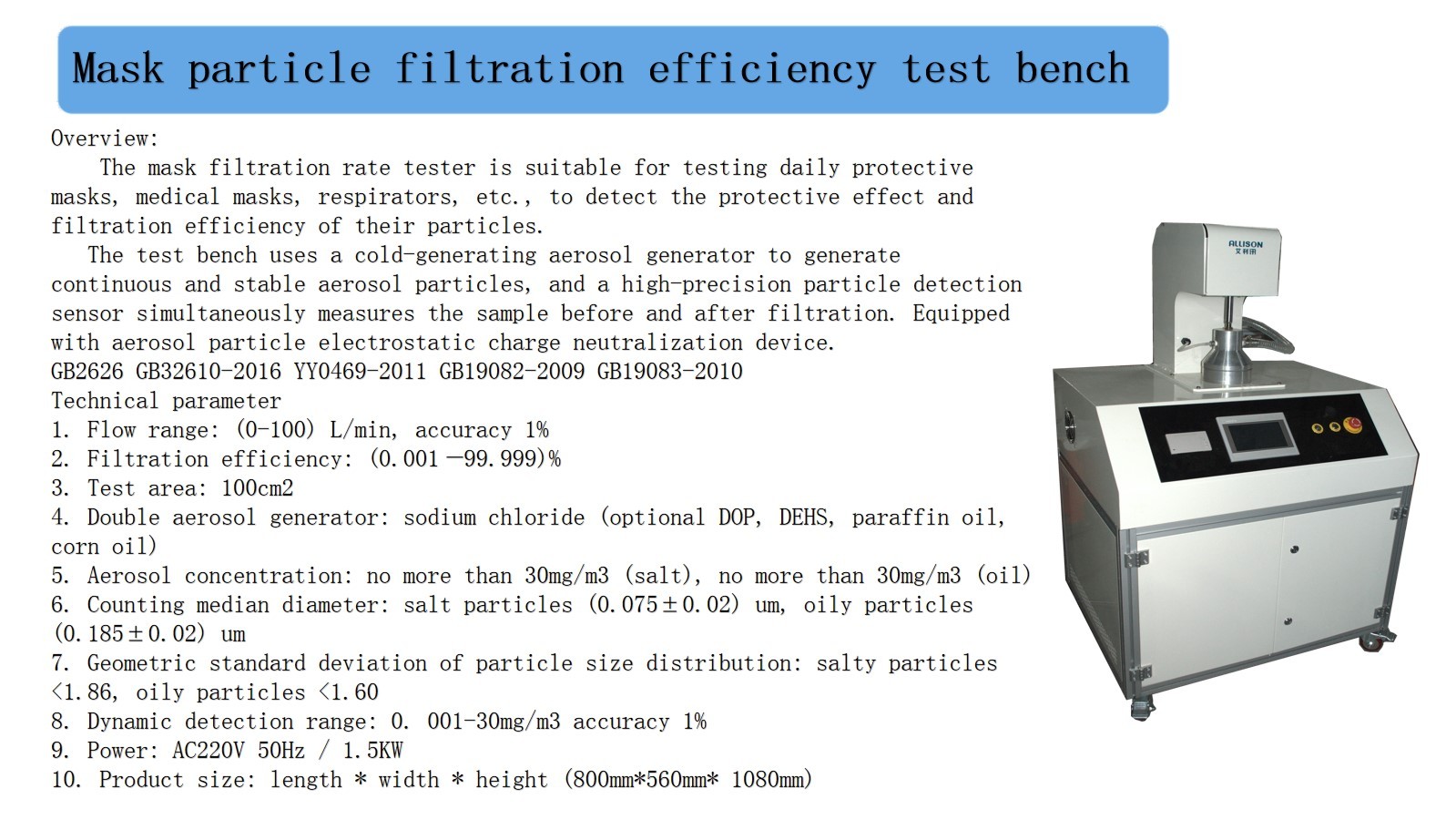

Applicable standards: GB2626 GB32610-2016 YY0469-2011 GB19082-2009 GB19083-2010

technical parameter

1. Flow range: (0-100) L/min, accuracy 1%

2. Filtration efficiency: (0.001—99.999)%

3. Test area: 100cm2

4. Double aerosol generator: sodium chloride (optional DOP, DEHS, paraffin oil, corn oil)

5. Aerosol concentration: no more than 30mg/m3 (salt), no more than 30mg/m3 (oil)

6. Counting median diameter: salty particles (0.075±0.02) um, oily particles (0.185±0.02) um

7. Geometric standard deviation of particle size distribution: salty particles<1.86, oily particles <1.60

8. Dynamic detection range: 0. 001-30mg/m3 accuracy 1%

9. Power: AC220V 50Hz / 1.5KW

10. Product size: length * width * height (800mm*560mm* 1080mm)
