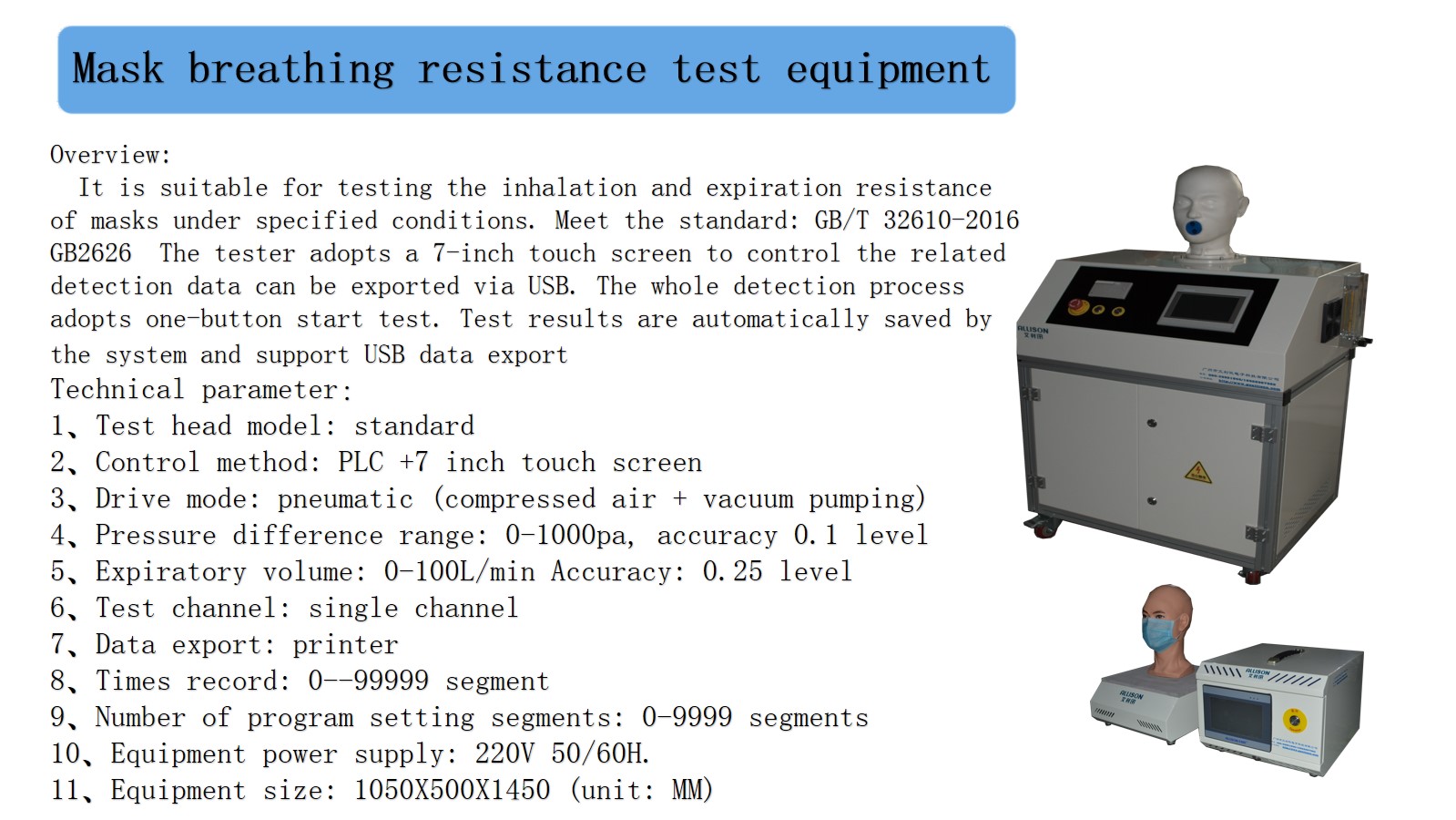

Mask breathing resistance tester

Product Mode: Fixed mode of products: Test Speed: Number of tests: Equipment size: Description: Overview: It is suitable for testing the inhalation and expiration resistance of masks under specified conditions. Meet the standard: GB/T 32610-2016 GB2626 The tester adopts a 7-inch touch screen to control the related detection data can be exported via USB. The whole detection process adopts one-button start test. The test result is automatically saved by the system and supports USB data export.

Main technical parameters

The main technical parameters:

1. Test head mold: standard

2. Control method: PLC + 7-inch touch screen

3. Drive mode: pneumatic (compressed air + vacuum pumping)

4. Pressure difference range: 0-1000pa, accuracy 0.1 level

5. Expiration volume/inspiration volume: 0-100L/min. Accuracy: 0.25 level

6. Test channel: single channel

7. Data export: printer

8. Times record: 0-99999 segment

9. Number of program setting segments: 0-9999 segments

10. Equipment power supply: 220V 0.75KW

11. Equipment size: 1050X500X1450 (unit: MM)

d483c9fc1420c6a334808fded705d70c.jpgcdf53efcdd8b7befbb6a44fcd37cff04.jpgbac2a7053bc50603a3d3d36007ffb483.jpg81951137c5f9a193f3cb3a02667c6aeb.jpg48180565ee401115916fa7ef91a61796.jpg0cc6a4f7f69be0d68e56ef2dd225e6d5.jpg
