Overview:

1. The equipment meets: IEC60227-2, IEC245-2, VDE0472, GB5023.2, IEC60245-2 (ed2) 1994+A1: 1997, GB5023.6 and GB5013.2, UL1581.

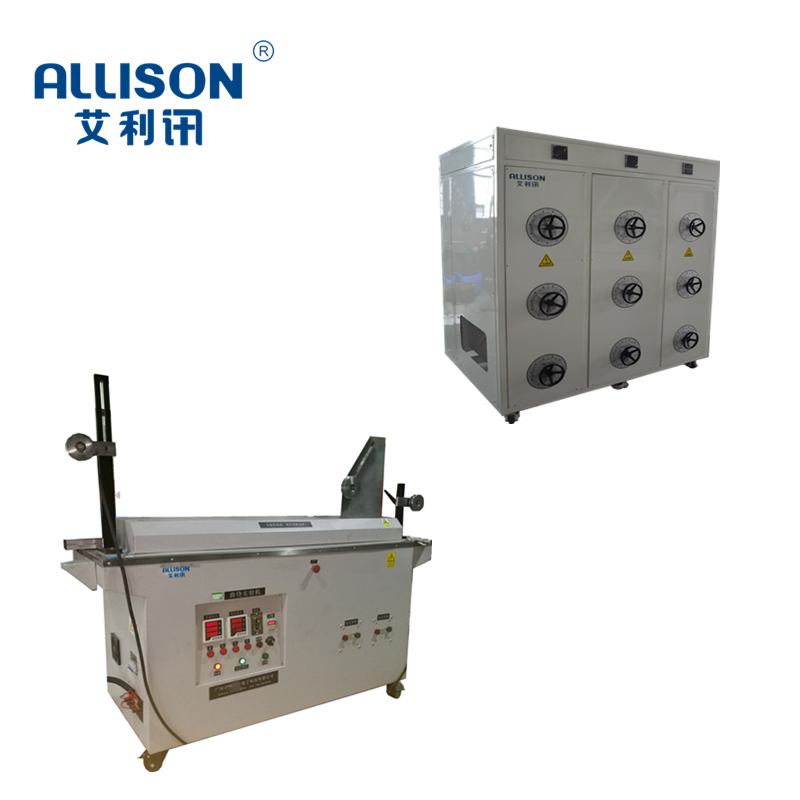

2. Scope of application: It is used to detect the damage degree of rubber insulated and sheathed flexible cables after a certain number of bends under the dynamic load.

3. The equipment adopts AC380V 50HZ power supply, with Mitsubishi PLC as the control core, LCD numerical control panel, easy to operate.

4. Technical parameters:

1. Load current: 0.5～35A

2. Test speed: 330±5mm/S

3. Test stroke: 1000mm±20mm

4. Test times: 1～999999

5. Test voltage: two-core single-phase AC: 0~250V (adjustable) / three-core three-phase AC: 0~450V (adjustable) 50HZ

Test line category:

1. Test type: two-core single-phase, three-phase three-wire, three-phase four-wire

2. Test method: no-load, single-phase (two-core), three-phase (three-phase three-wire/three-phase four-wire) can be selected

Judgment method of test result:

1. Indicator light indication: O, R, S, T phase disconnection and automatic shutdown;

2. Indicator light indication: R/S, R/T, S/T, R/O, S/O, T/O short circuit and automatic shutdown;

3. Indicator light indication: O, R, S, T and pulley short circuit
