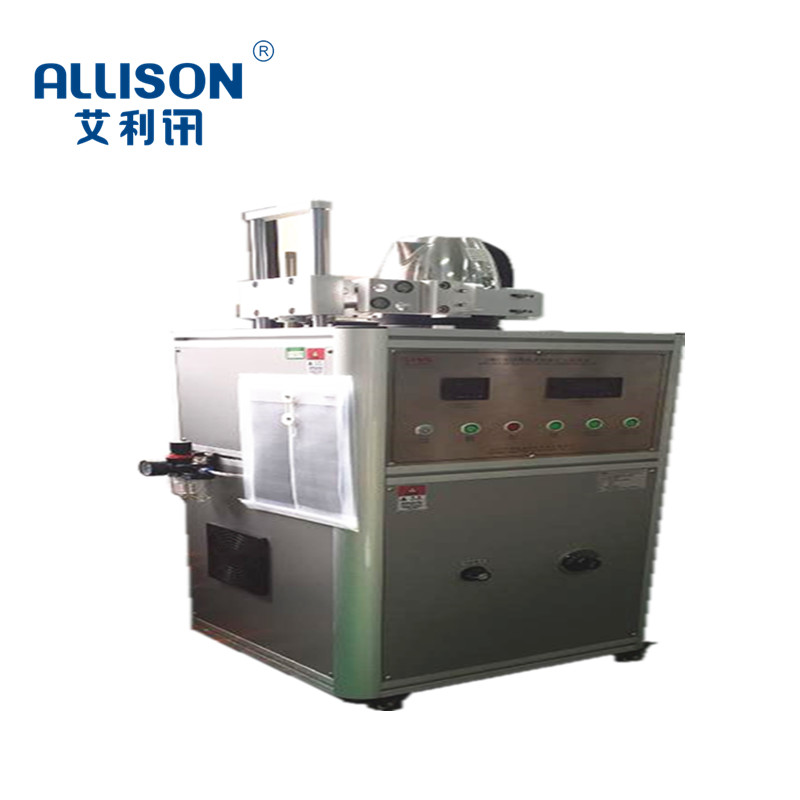

This equipment is based on IEC60335-2-15: 22.106 clauses and GB4706.19-1999 clauses 19 and 22 to test the coupling structure of the electric kettle. According to the requirements of the standard, the pot should be placed on the base at a frequency of 10 times per minute and pulled out 10000 times to test the reliability of its structure with and without electricity.

Function parameter:

1. Applicable standards: GB4706.19:22.106, GB4706.2:18, IEC60335-2-15: 22.106 standard clauses.

2. Unplugging speed: 10 times/min

3. The test mode options are: power-on test, power-off test, power-off test after power-on test, and power-on test after power-on test.

4. Set the number of cycles and cycles.

5. Driven by adjustable stroke cylinder.

6. The power-on time can be set from 0.1s to 3600s.

7. Drop height: 20mm.

8. Clamping sample size: φ100 mm -φ300mm.

9. Pull up and lower the body of the pot by simulating a human hand.

10. Check the power socket device and power failure detection system function.

11. Equipped with test completion alarm and test failure alarm
