1. Crank speed: 30RPM (speed can be adjusted in the control box);

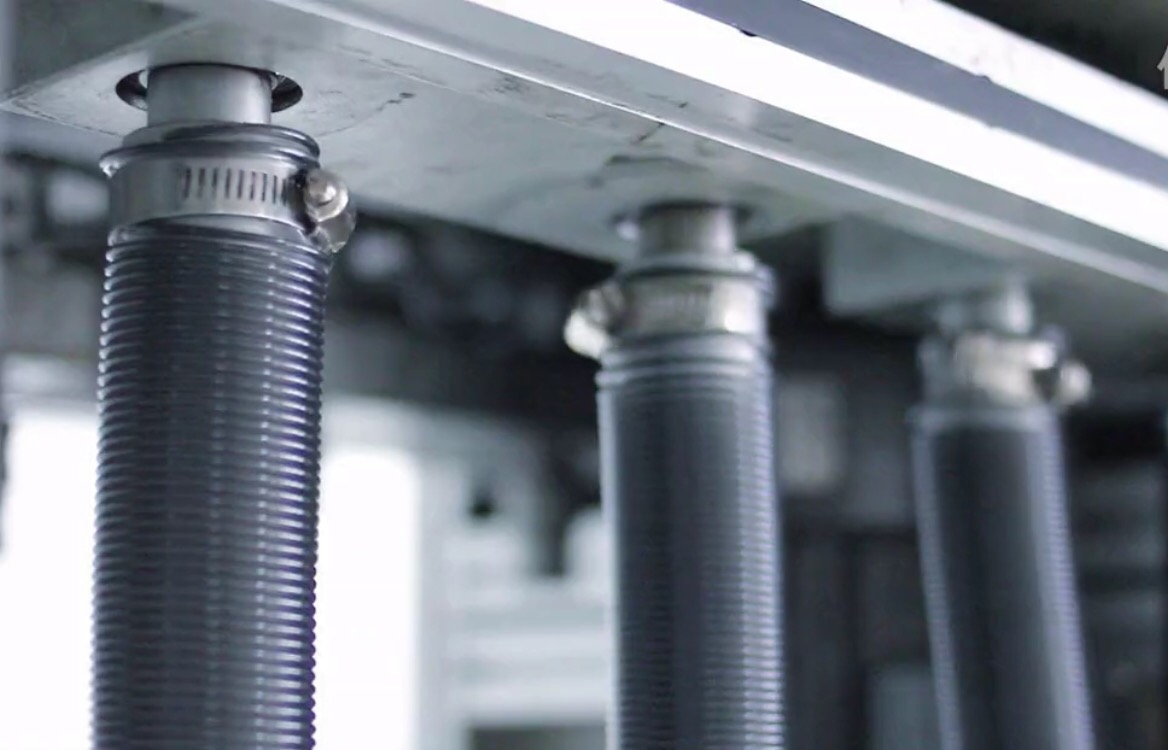

2. Hose moving distance: 300mm;

3. The moving speed of the abrasive belt: 0.1m/mm (the speed can be adjusted in the control box);

4. Abrasive belt: ISO/DIS6344 requires a size of P100 abrasive belt;

5. Weight of weight: 1Kg.

6. The distance between the weight and the center of the roller: 600mm;

7. When installing, take out the pallet, put the weight on the pallet position, and then connect it with the sample, the center distance between the side weight and the roller is just 600mm;

8. Number of counts: 0-99999 (can be set)

9. Control mode: touch screen control;

10. Test station: three stations (linkage);

11. Dimensions: about 1200x600x1600mm;

12. Equipment power supply: AC220V / 50HZ 2.5Kw.
