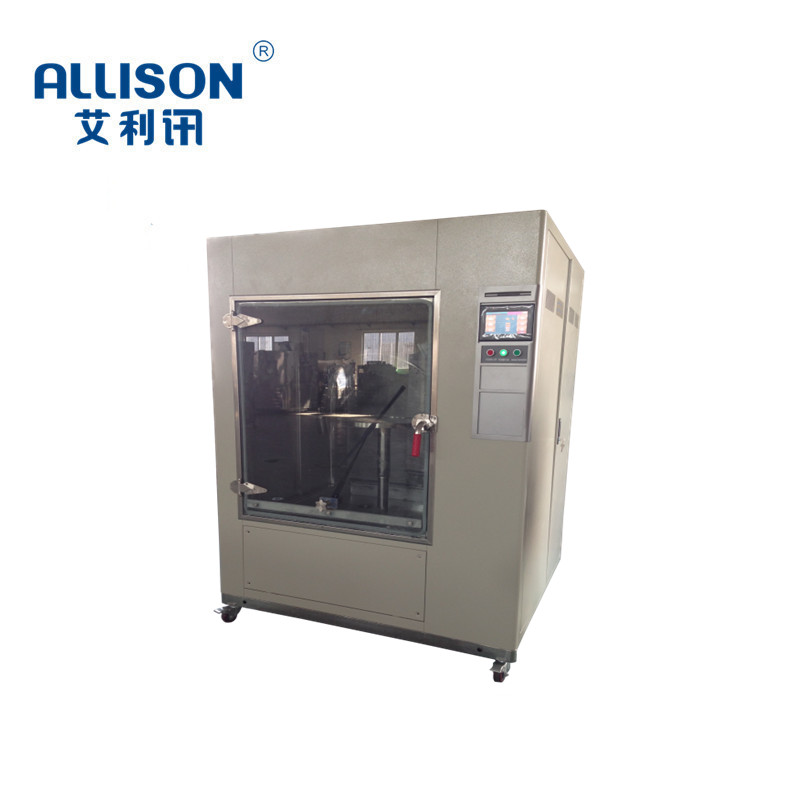

IPX9K water spray test box (box type)

Product Mode： Fixed mode of products： Test Speed： Number of tests： Equipment size： Description: This set of equipment can meet the requirements of GB4208 IEC60529 GB7000.1 "Enclosure Protection Grade" IPX1, IPX2, IPX3, IPX4. This product is mainly suitable for communication products, auto parts, outdoor lighting and signaling devices. IPX1234 waterproof rating test.

Main technical parameters

1. Model: QX-P9KA;


2. Working size: 1000X1000X800mm (can be customized)


3. The half diameter of the nozzle hole: R375mm;


4. Swing tube swing: ±45°, ±60°, ±90° ±180° adjustable


5. The outer diameter of the pendulum tube: Φ16mm-20mm (stainless steel);


6. Spacing: 50mm


7. Rain water pressure: 5--10kpa (adjustable);


8. Water flow: can be displayed


9. Test bench: turntable 300-500mm; speed: 1～17r/min


10. Control method: mechanical/Mitsubishi PLC control


11. Power supply voltage: AC220V 50Hz 5.5KW


12. Equipment size: 1650 X 1200 X 1650 Unit: MM
