I. Overview:

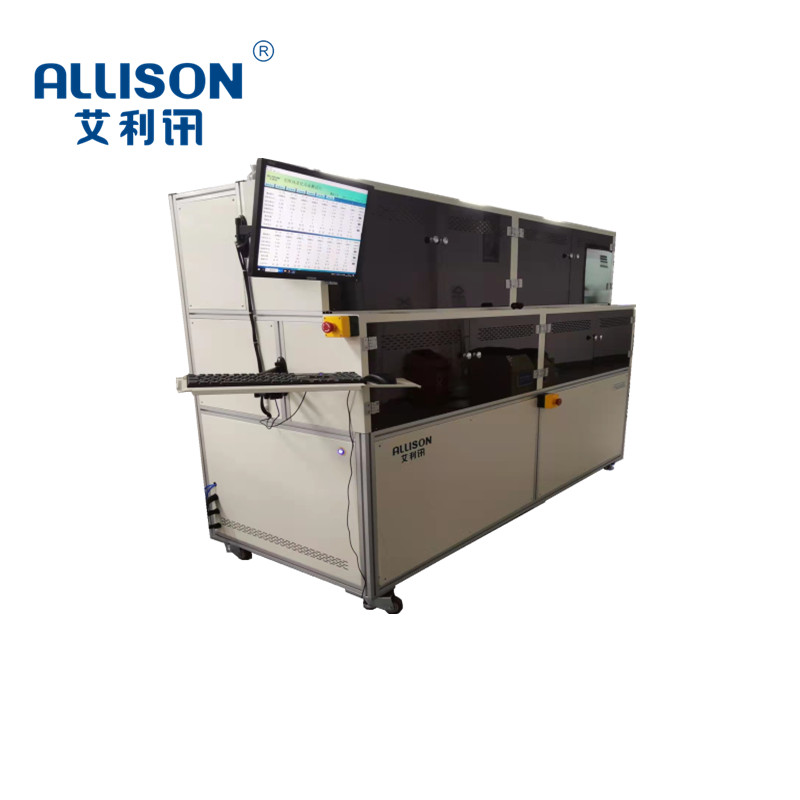

Mainly used for continuous and periodic aging test of hair dryer. Through the setting of the control system, the current, voltage, test times, time and test cycle of the test product are monitored and the test process is monitored and the relevant test data is recorded.

2. Relevant technical parameters:

1. Detection station: 18 stations.

2. You can set the test time and adjust the voltage and current according to your own needs

3. Set the number of tests, time, upper and lower limits of current alarm, and display independently for each station;

6. Equipped with smoke alarm, sound and light alarm and automatic power-off function

7. The upper, middle and lower three-layer structure, each layer clamps 6 products,

8. There is a load output socket in front of each station.

9. The total power input is through the air switch, ≥80A;

10. Equipped with leakage protection switch, with overcurrent and overvoltage protection devices.

13. Voltage: 0--250V,

14. Approximate external dimensions: length 1800X width 650X height 1700MM,

15. Weight: 230Kg, power supply: 220V 3.5KW

16. Equipment size: 1800X750X1750 Unit: MM
