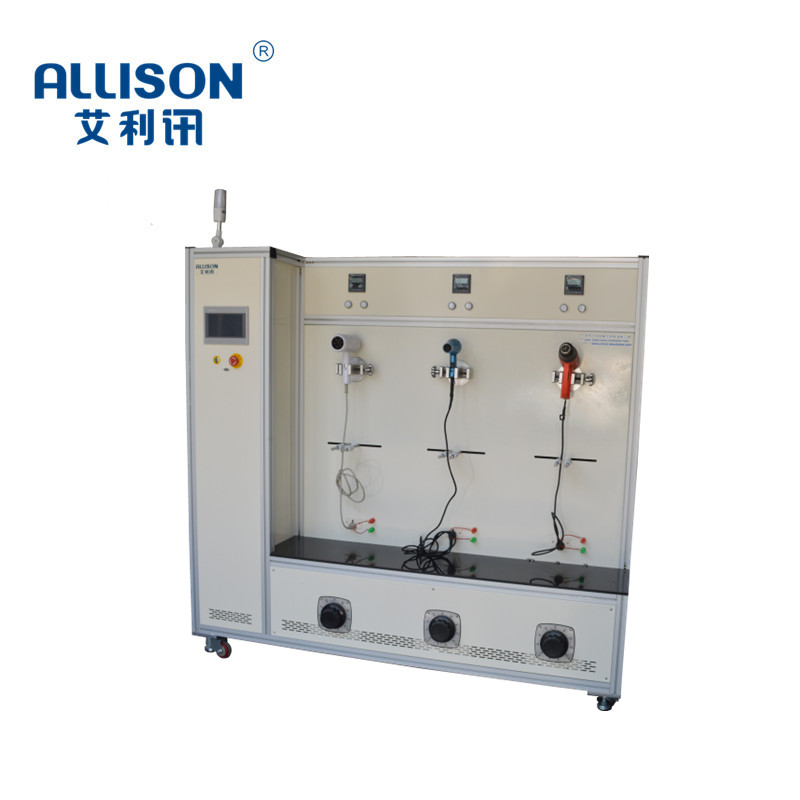

I. Overview:

According to the test standards: UL, IEC, VDE standards, it is specially designed to test the flexural strength of the lead wires and wires of the power plug. The test method is to fix the product on the fixture and load a certain load weight. During the test, the fixture swings left and right. After a certain number of times, check the disconnection rate; or when it cannot be powered on and cannot withstand the test load, check the total number of swings. This function can automatically count, and when the sample is bent to the point that it cannot be energized, it will automatically stop

Second, the main parameters:

Second, the main parameters:

1. Fixture: 5 stations

2. Swing angle: 270°-0 - 270° positive and negative continuously adjustable

3. Swing speed: 0--60 times adjustable

4. Automatic counter: 6 counts separately

5. Load weight: 50, 100, 200, 300, 500g

6. With or without load test selection function

7. Load range: AC0--30A or DC0--5A (five groups can be independently adjusted)

8. Size: 125x6x120cm

  9. Weight: 100, 120, 150, 200, 300, 500g each

10. Power supply: 220V 1.5KW

11. Optional function: load voltage 0--300V adjustable, load current 0-30A

12. Dimensions: 1400X550X1250MM
