I. Overview:

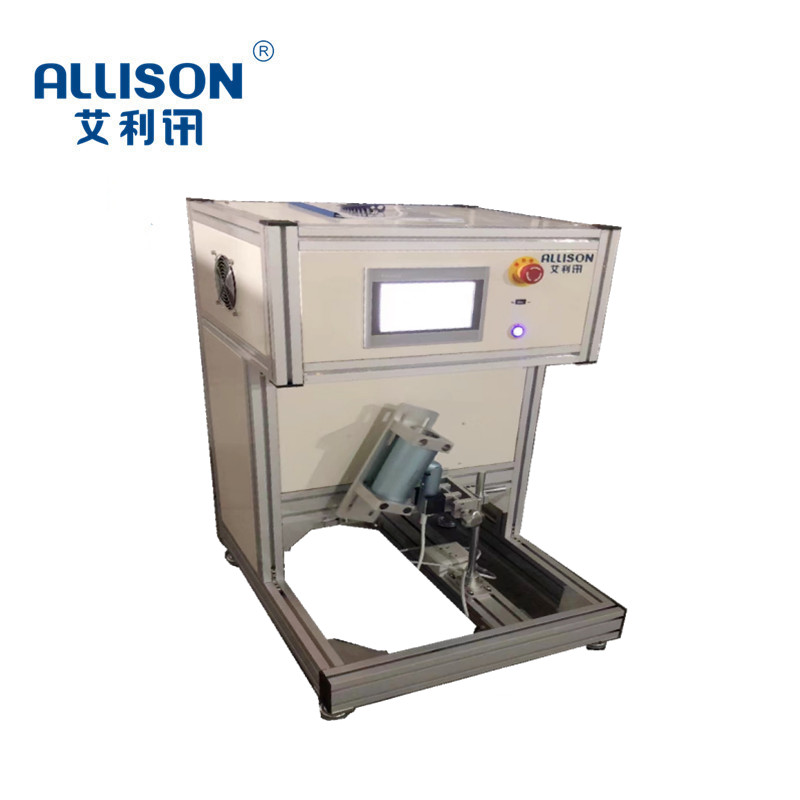

The hair dryer folding durability life test machine is suitable for the durability test of the folding life of the hair dryer handle. The life test of the actual working condition is simulated by swinging back and forth of the rotating mechanism. The testing machine is assembled from aluminum profiles, controlled by PLC, and displayed on a 7-inch touch screen. Set relevant angles and times on the touch screen. The equipment is easy to operate, and no special person is required to operate it. The function can automatically count, and when the sample is bent to the point that it cannot be energized, it will stop automatically.

Second, the main parameters:

1. Equipment control power supply: 220V 50Hz 0.75KW

2. Test station: single station

3. Test voltage: 0-300V adjustable

4. Transmission mode: servo stepping motor control

5. Control mode: PLC main control

6. Swing angle: 0-90 degrees adjustable

7. Test times: 0-999999 times can be set

8. Detection mode: life test

9. Equipment size: about 750X560X680 high (unit: MM)
