I. Overview:

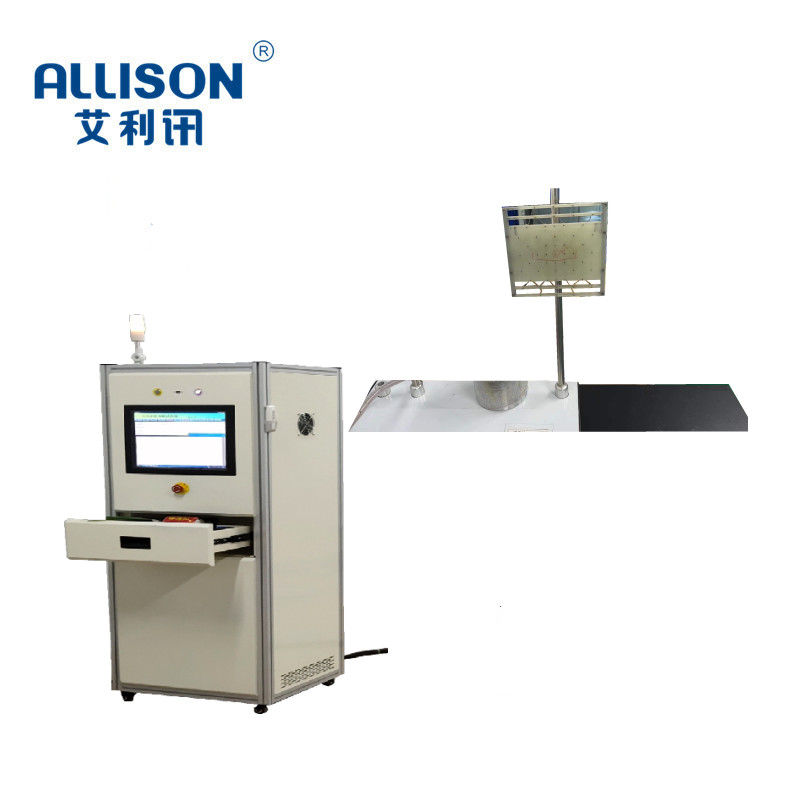

The air duct temperature test system is a professional testing device for hair dryers (air ducts) under working conditions. It fully complies with the requirements of the UL859 international safety standard. Install the system in the computer and connect the RS-23S/USB interface, you can test the data through the interface panel. Real-time demonstration and analysis of data. It can be used for 24-hour automatic testing. The characteristic of the data acquisition instrument of the air duct temperature life test system is that it can collect up to 60 points of temperature at the same time. Customers can perform various graph analysis and data collection of the temperature on the computer. The temperature position of the hottest five points of the air duct can be displayed. Seeing the temperature display of the outline of the entire test surface, these are beyond the capabilities of other collectors. They play an important technical reference value for the quality assessment of the air duct, and are also a necessary testing method for the air duct industry. used by quality inspection agencies.

2. Technical Specifications:

A Hair dryer temperature test system (PC computer set

1 Brand: MORGAN (USA)

2 FIGURE IS ACCORDING TO UL859

3 Thermocouple temperature wire model: K type J type

4 Thermocouple wire length: 1.2m

5 The test system consists of three parts:

a US UL859 air duct 53-point temperature test target

b 60-channel temperature data collector

c Three-dimensional stereo support
