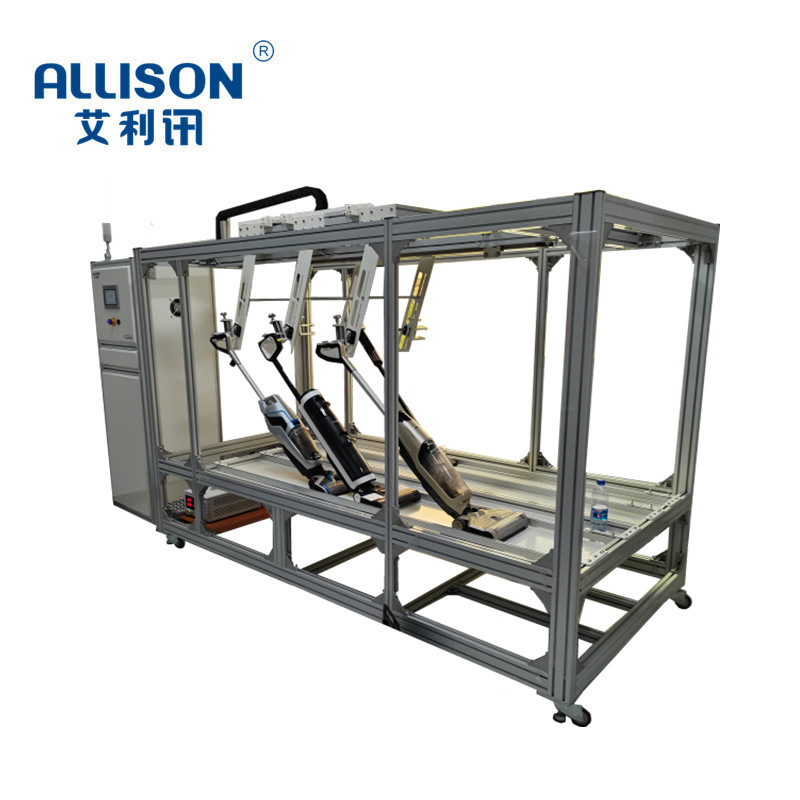

The floor washing machine testing machine is mainly suitable for the life and aging test of the floor washing machine. During the test, it simulates the actual ground walking situation of the floor washing machine, and lays carpets, hard floors, floor tiles and other materials on the test table. Through the PLC control and transmission mechanism, the washing machine is relatively reciprocating on the test bench. Reciprocating linear walking motion on different worktables at a set speed. The testing machine is controlled by PLC/7-inch touch screen to display relevant testing parameters. The relevant detection data is exported via USB. It has strong versatility, simple operation, convenient control and low failure rate.

The main technical parameters;

1. Test station: 2-12 stations

2. Detection voltage: AC: 0-60V Current: 0-60A

3. Effective travel of the test bench: 100-1000mm adjustable;

4. The moving speed of the test fixture: 450-1000mm/s can be set;

5. Electrical parameters: current, voltage, power

6. Cycle: 0-99999 adjustable;

7. Counting range: 0-9999;

9. Test mode: time on-off setting, DC charging and discharging mode

10. Drive mode: servo motor reciprocating drive mechanism, mechanical transmission mechanism.

11. Equipment power supply: 220V 3.5KW
