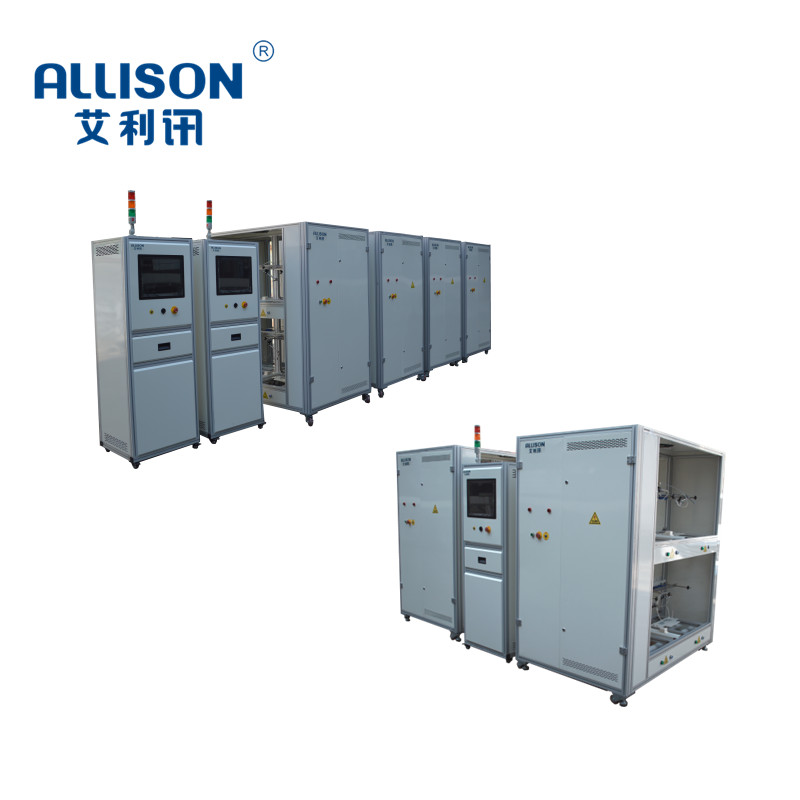

The whole washing machine life test room is suitable for the aging life and performance testing of the whole washing machine for household appliances. It is mainly aimed at the performance test and long-term aging life test of the whole machine of the DC washing machine. The testing room as a whole is composed of the testing room body, the whole machine aging test bench, the central control system, the independent room of the suction area, the exhaust system, and the aging system. The entire test and related monitoring inside the test room are controlled by the central control system in real time and on-site environment monitoring.

The main parameters:

1. Station: 8 stations/table

2. Machine reference dimensions: length 150cm x width 120cm x height 120cm.

3. Overall maximum test sample area: 50X75cm

4. The voltage regulation range of the whole machine: DC 0-36V adjustable

5. Control power supply: The working voltage of the equipment console is AC 220V, and the working voltage of the equipment and the sample load voltage are independently powered and do not interfere with each other;

6. Each station is equipped with an outlet pipe to the suction room. The orifice plate is 10mm, 13mm, 15mm, 16mm, 19mm, 0.5inch, 0.375inch, 0.25inch, 0.125inch, a total of 9 pieces. The material is 2mm thick stainless steel plate,

7. Control mode: PLC industrial computer

 8. Display: 17-inch display

  9. Power supply: 220V 8.5KW
