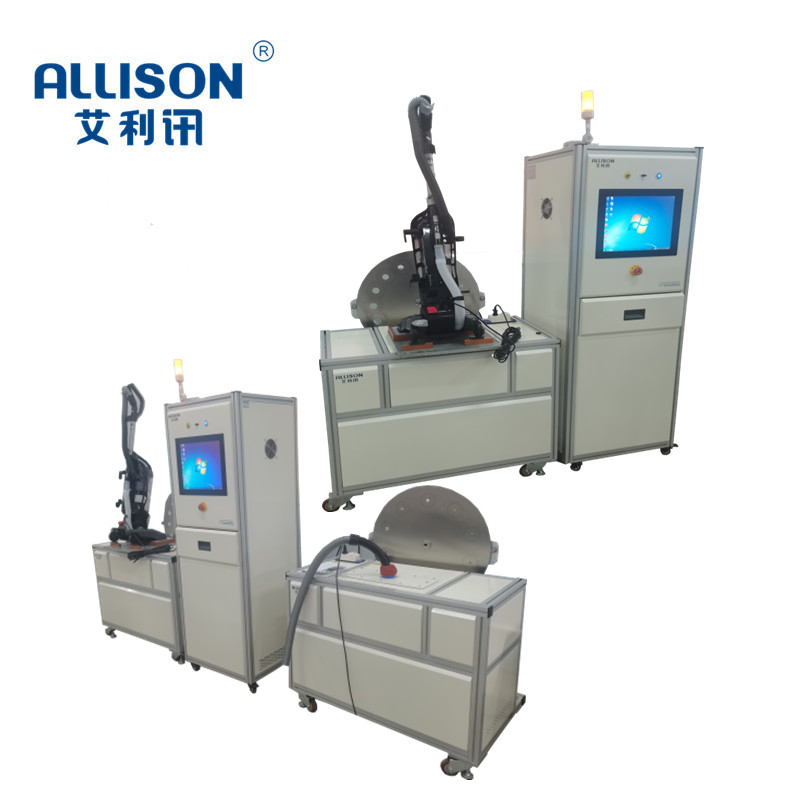

The energy efficiency testing equipment of the suction-washing integrated floor scrubber is designed according to the IEC60312 standard, and is mainly used to test the suction-washing integrated vacuum cleaner for performance testing of the whole machine. The testing equipment adopts industrial computer and 17-inch display to automatically calculate the tested items, automatically collect data, record data, etc., and can export and print related test content through USB.

     The test parameters are the voltage, current, input power, power factor, suction power, flow rate, vacuum degree and efficiency of the whole machine. Comprehensive performance test equipment designed and manufactured in accordance with the requirements of American standard F431, F558 and European standard IEC 60312. It is suitable for the detection of vacuum cleaners by various manufacturers and testing institutions of vacuum cleaners and scrubbers.

The main technical parameters;

1. Test station: single station

2. Test bench size: 3000×2000mm; Pressure equalizing box size: 500X500X500 Unit: MM

3. Detection mode: European standard, American standard

4. Drive motor: Servo motor

5. Flow meter: (0.5---5) cubic meters per minute, degree: ±1%

6. Vacuum pressure gauge: (-90-0) Kpa, degree: ±1%

7. According to the requirements of American standard and European standard, American standard is rotary orifice type, orifice plate series size (mm): 63.5, 57.2, 50.8, 44.5, 38.1, 34.9, 31.7, 28.6, 25.4, 22.2, 19.0, 15.8, 12.7 , 9.5 and 6.3

8. Equipment power supply: 220V Power: 2.5KW
