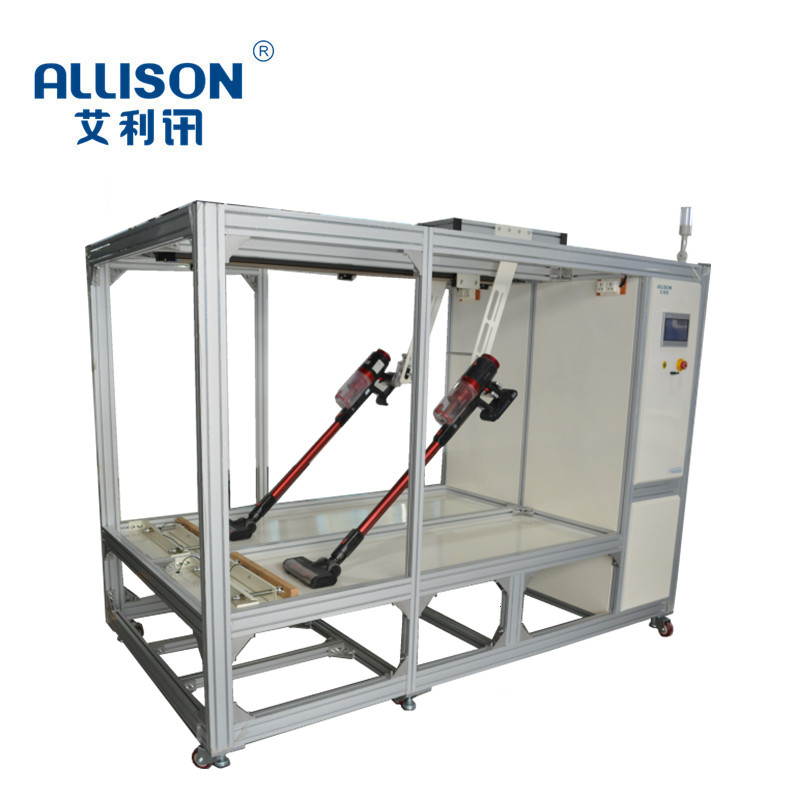

The impact strength life tester of the floor brush of the floor scrubber is mainly used to test the durability impact test of the floor brush and check the quality and reliability of the floor brush. The stepper motor is used as the driving source to drive the push rod to reciprocate and rotate, so as to complete the reciprocating action of the handle, which is opened and closed through the PLC control action, simulating the action of manual operation. The equipment has strong versatility, simple operation, convenient control and low failure rate.

The main technical parameters

1. Equipment station: single station

2. Touch screen: 7-inch color touch screen

3. PLC: Japan Mitsubishi, data power failure memory function;

4. Motor: stepper + driver

5. Speed: speed 1.0m/s±50% adjustable

6. Test voltage: AC 0-500V DC 0-36V

7. Cycle: 0-999999 times

8. Impact force value display: 0-200N

9. Counting/timing: 0-9999999 (can be preset)

10. Start mode: servo stepping

11. Dimensions of the test equipment: about 2000X1250X1700 (height) MM

12. Equipment power supply: 220V 2.5KW
