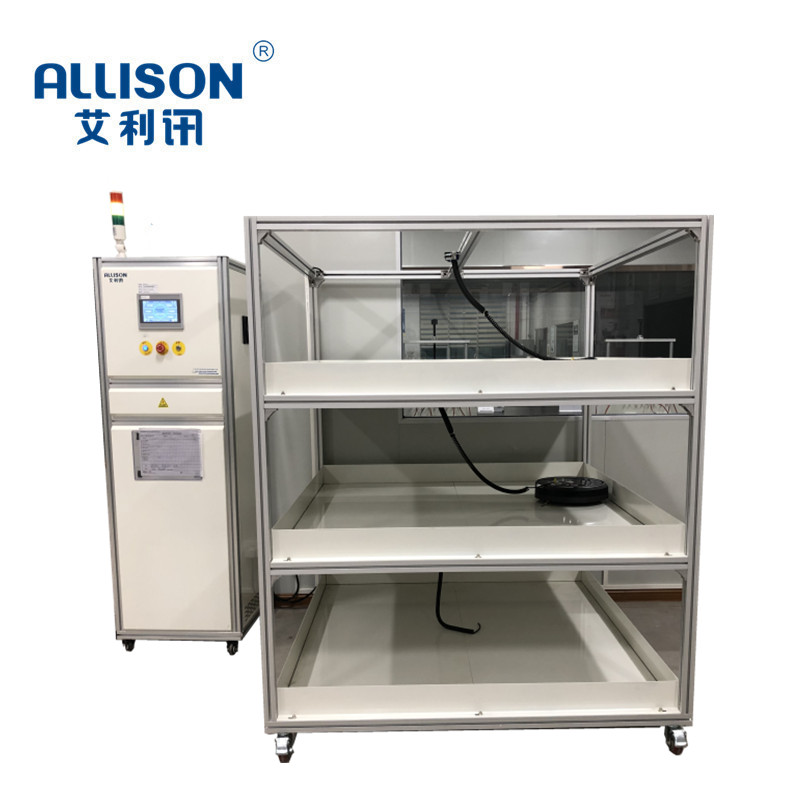

Floor scrubber machine comprehensive ability test test machine. The three-layer simulation of walking on different floors is tested. Carry out tests such as simulated walking life test, photoelectric sensor life test, impact test and other tests on the washing machine robot. Carry out the comprehensive use condition evaluation test of the sweeping robot. The testing machine is controlled by PLC program, the 7-inch touch screen sets relevant values, and the relevant test data can be exported through USB.

The main technical parameters;

1. The size of the robot life test frame is 1.8m high x 1.5m wide x 1.5m long

2. Three stations can operate independently;

3. Test floor: marble tile, solid wood floor, short-haired ASTM LEVELLOOP carpet, smooth pine board

4. The surface of each layer of the test device is equipped with protective bumping bars, and the protective bumping bars must have sufficient strength to meet the impact of the robot during operation.

5. The three robots on each set are powered by DC power

6. Test station: 3 stations

7. Test bench size: 1500×1500mm;

8. Supply voltage: 0-36V (DC) Current: 0-80A

9. Detection method: current, voltage, power

10. Equipment power supply: 220V 3.5KW Equipment size: 2000X1550X1650 unit MM
