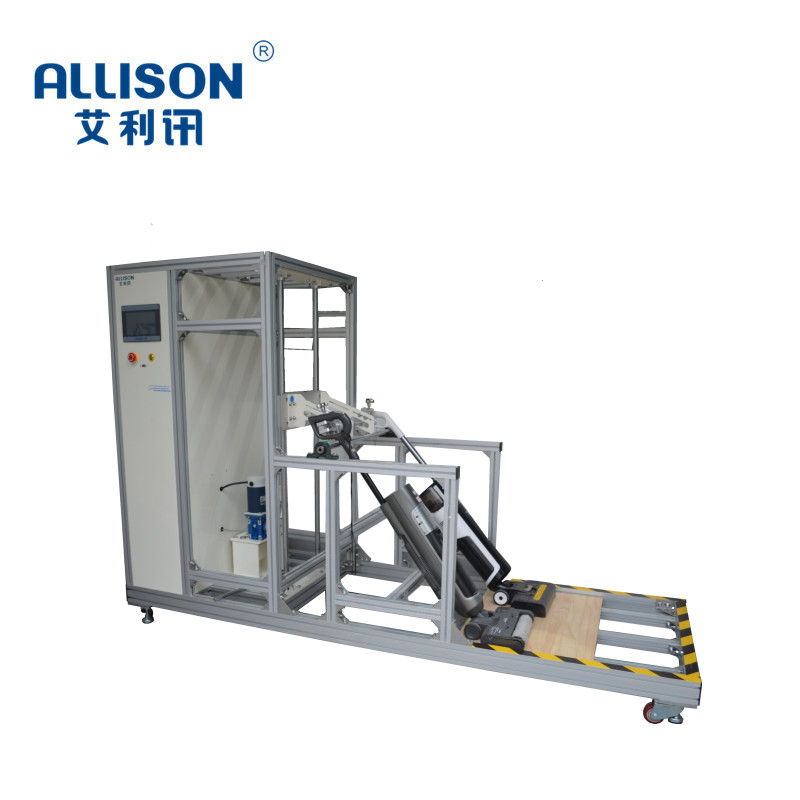

The floor scrubber fishing slap test bench is mainly aimed at comprehensive strength durability life test such as vacuum cleaner handle and floor brush strength. The handle of the vacuum cleaner is clamped and fixed at both ends by the fixture, and the servo drive mechanism drives the vacuum cleaner to perform the flapping test. The test bench is controlled by PLC program and relevant parameters are set and recorded through a 7-inch touch screen. The equipment is assembled with aluminum profiles.

The main technical parameters

1. Drive: servo motor

2. Fixture action: chuck type

3. Slap angle: 0~80 degrees

4. Speed: 1~40 r/min can be set arbitrarily

5. Times: 0～999999 can be set arbitrarily

6. Control mode: PLC control

7. Detection station: independent 1 station test

8. Detection power: collection of electrical parameters

9. Equipment size 700×1500×1350 Unit: MM
