1. Manufactured according to the requirements of Chapter 6 of QB/T4833, 6.3.4 Anti-drop ability test, it is mainly suitable for the test of anti-drop ability of sweeping robots.

  Related parameters:

1. The drop ability test should be applied to the front 800X800 unit mm (within 2 times to 3 times the maximum outer size of the robot to suit the size.

2. Substrate 1200*1200 Unit: mm

3. The test height is 100mm.

4. The bottom plate is equipped with movable casters for easy movement

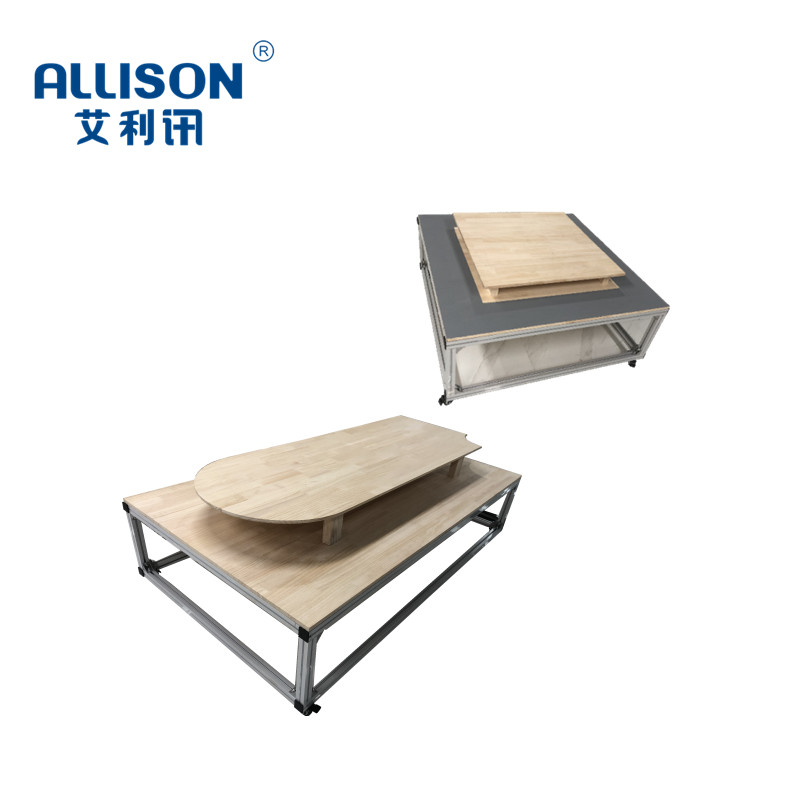

2. IEC 62849:2016, Chapter 9 Standard Manufacturing. The test platform consists of a base and steps, which are assembled from pine boards of the same material.

  1. Size of base test bench: 2000X1150 Unit: mm

2. The step size is R350 and the semicircular table is composed of 1850X700X175 unit: mm
