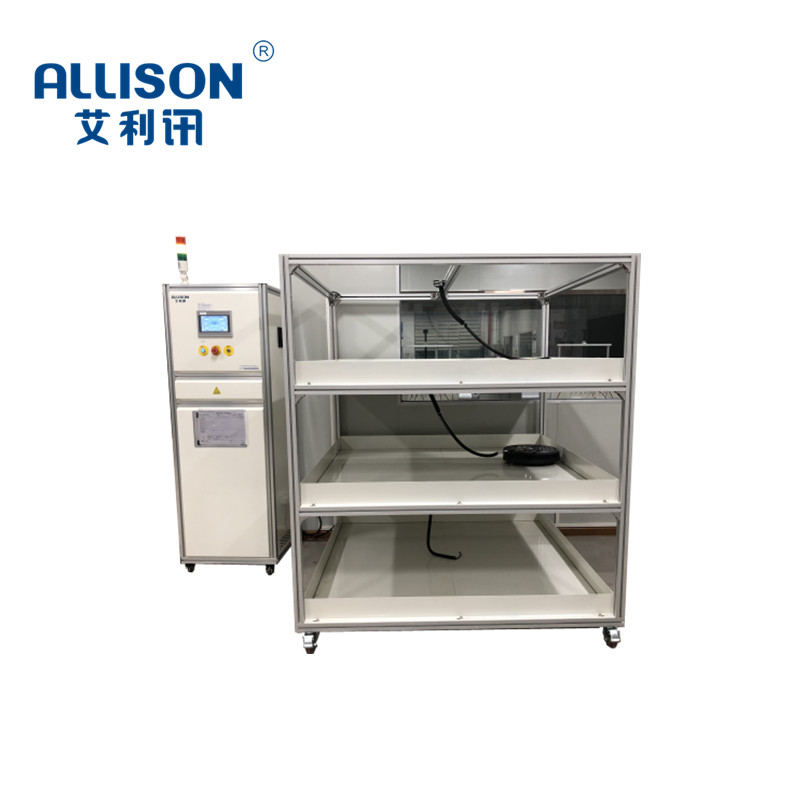

1. Overview: Sweeping machinery comprehensive ability testing machine. The three-layer simulation of walking on different floors is tested. The sweeping robot is tested for simulated walking life test, photoelectric sensor life test, impact test and other tests. Carry out the comprehensive use condition evaluation test of the sweeping robot. The testing machine is controlled by PLC program, the relevant values are set on the 7-inch touch screen, and the relevant test data can be exported through USB.

2. Technical parameters

1. The size of the robot life test frame is 1.8m high x 1.5m wide x 1.5m long

2. Three stations can operate independently;

3. Test the floor:

Marble Tile, Solid Wood Flooring, Shorthair ASTM LEVELLOOP Carpet, Smooth Pine Plank

4. The surface of each layer of the test device is equipped with protective bumping bars, and the protective bumping bars must have sufficient strength to meet the impact of the robot during operation.

5. The three robots on each set are powered by DC power

6. Test station: 3 stations

7. Test bench size: 1500×1500mm;

8. Supply voltage: 0-36V (DC) Current: 0-20A

9. Detection method: current, voltage, power

10. Control mode: Japan Mitsubishi PLC+7-inch touch screen display

11. Equipment power supply: 220V 3.5KW

12. Equipment size: 2000X1550X1650 in mm
