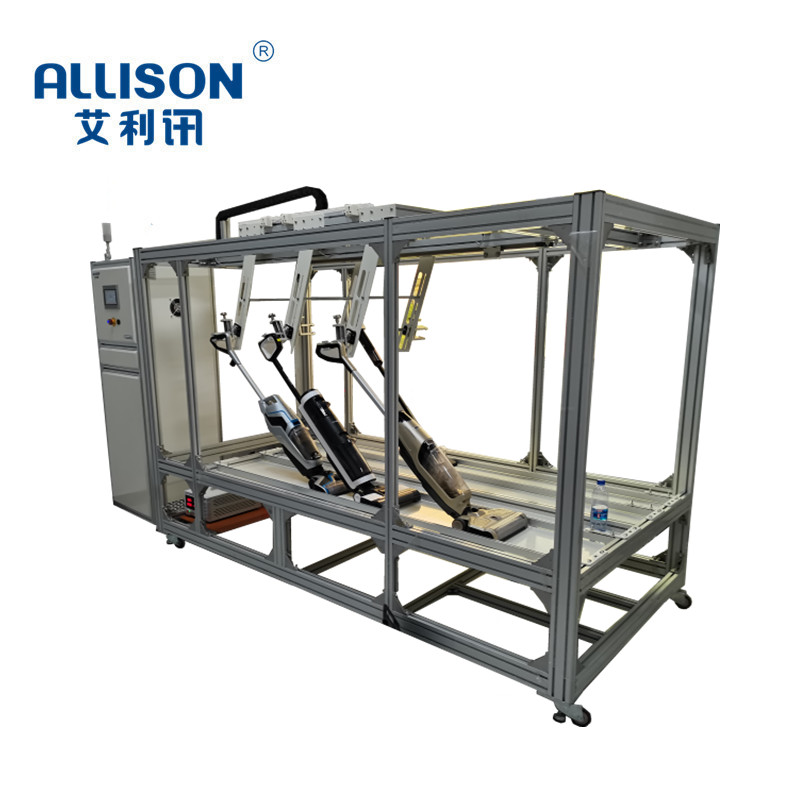

The moveable bed is mainly suitable for the moveable aging test of the floor washer. Through the long-term moveable aging test, the service life of the floor washer in different testing ground can be judged. According to different test environment, users can lay carpet, hard floor, floor tile and other materials on the test bench. Through PLC control and transmission mechanism, so that the washing machine in the test table relative to do reciprocating movement. To set a good speed on the different worktable for reciprocating straight-line walking movement. PLC control/7-inch touch screen display and set the relevant test parameters. After the test is completed, the test data can be exported via USB. The utility model has the advantages of strong generality, simple operation and convenient control.

Main technical parameters:

1, test station: 2-6 station, optional

 2, detection voltage: AC: 0-60V detection current: 0-20A

3, test bench moving effective stroke: 100-1000mm adjustable;

4. Test fixture moving speed: 450-1000mm/s can be set

5. Electric parameters: current, voltage, power

6. Period: 0-99999 adjustable

7. Counting Range: 0-99999

8, start mode: Cylinder Point Start

9, test mode: Time on-off settings, DC charging and discharging mode

10, driving mode: servo motor reciprocating drive mechanism, mechanical transmission mechanism. Equipment Power: 220V 2.5 kw
