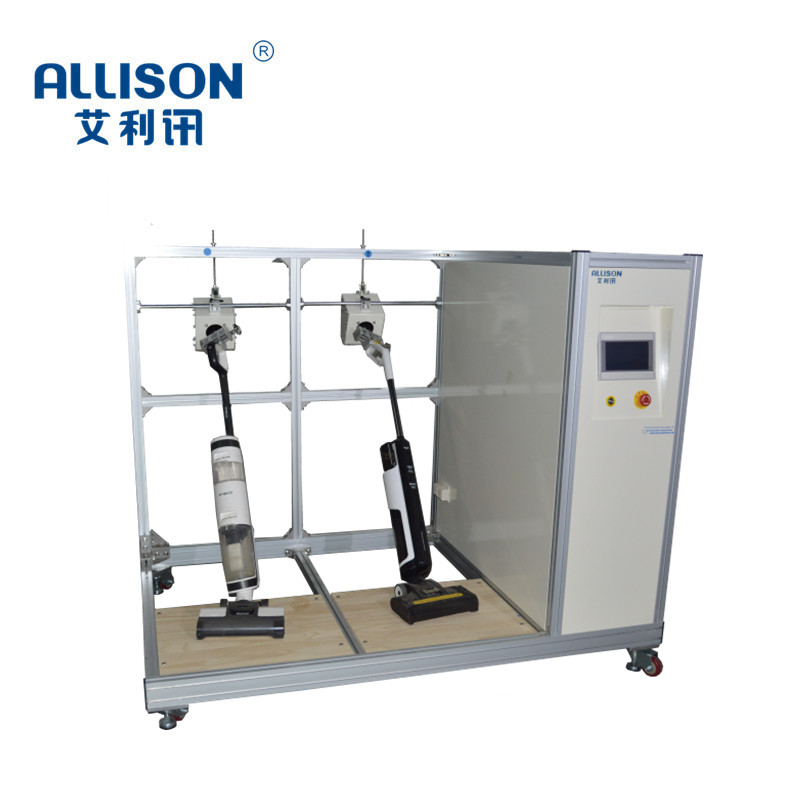

The torsional and swinging test-bed is mainly used for the long-time torsional and swinging life test of the whole machine, the handle, the rotating shaft and the rotating shaft of the ground brush. The handle of the washing machine is clamped and fixed at both ends through a clamp, and the servo drive mechanism drives the handle to continuously rotate and swing. The operator can implement the torsion/swing test by switching the relevant test fixture and test mode. The test-bed is controlled by PLC program and related parameters are set and displayed by 7-inch touch screen. The test data is automatically saved and recorded, and exported by USB. The equipment is assembled from aluminum profiles. Powder-coated sheet metal assembly, beautiful and generous. The utility model has the advantages of stable operation, convenient operation, etc

Main technical parameters:

1, test station: 2-6 station optional

2, test bed size: 100 × 600mm

3, test torsion angle: 360-0-360 degrees can be adjusted;

4. Angle Control Accuracy: 0.1 degree

5. Control mode: PLC + 7-inch touch screen display

6. Test platform: Pine Plank

7. Adjustable range of counting/time: 0-9999999 times

8. Power-on mode: optional

9. Test mode: Test Times/time on-off setting

10. Driver: Servo Motor

11. Power supply: 220V 1.75 kw (without power supply)

12. Size: 1700X1250X1450 unit MM
