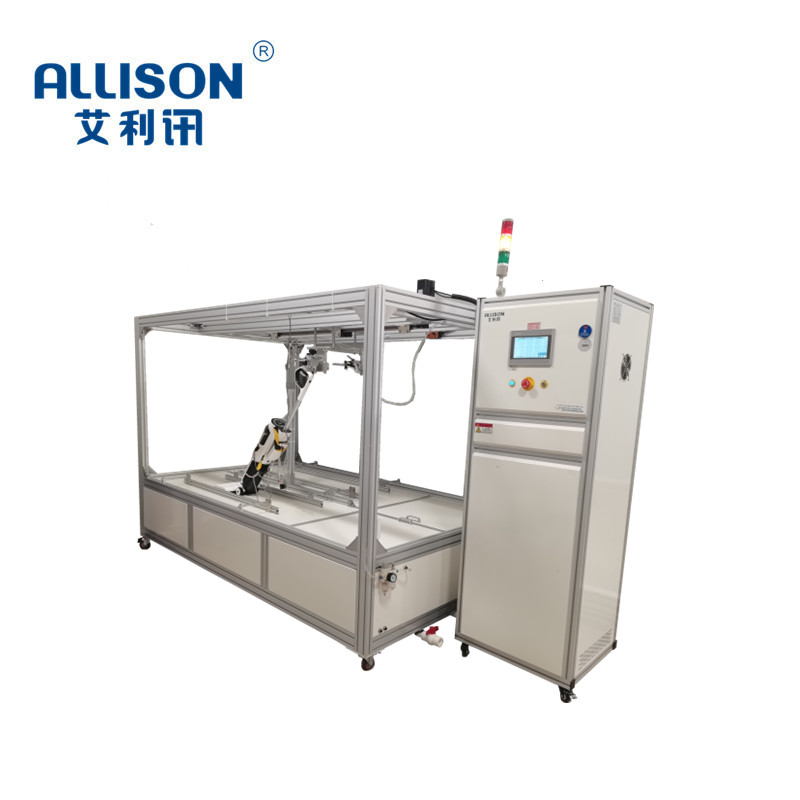

Washing machine comprehensive performance test equipment, according to customer requirements and related test requirements design and manufacture of special equipment. Detection Equipment Using PLC control, 7-inch display. The frame is made of profile and 304 non-inductive steel sheet metal, and adopts self-developed control system, on the touch screen, the user can set the comprehensive parameters of the washing machine, such as water quantity, water consumption, voltage, current, electric energy, etc. . At the same time, it is equipped with one-button auto-start test function, auto-judge, auto-alarm, auto-stop after the completion of the test or failure.

Function parameters:

1. Test function: electric parameter collection, water consumption calculation, energy efficiency calculation, key start

2. 2.0% . Adding/pumping mode: Pump Independent Quantitative Plus/pumping

3. Add/pump time: 0-999999s can be set;

4.  Number of cycles: 0-9999999;

5. Test time: 0-999999S/m/h optional

6. Detection Range: current, voltage, power, electric energy,

7. plus/pumping water consumption, key start 7.5% . Cycle stop time: 0-9999.99 min;

8.  Number of trials: 0-999,999;

9. Control Interface: 7-inch touch screen display

10.  Sample start-up mode: pneumatic start-up;

11. ontrol mode: Mitsubishi PLC + Touch Screen;

12. dimensions (LXWXH) : 2200X950X1680 units: MM

13. 13. Power supply: 220V 2KW
