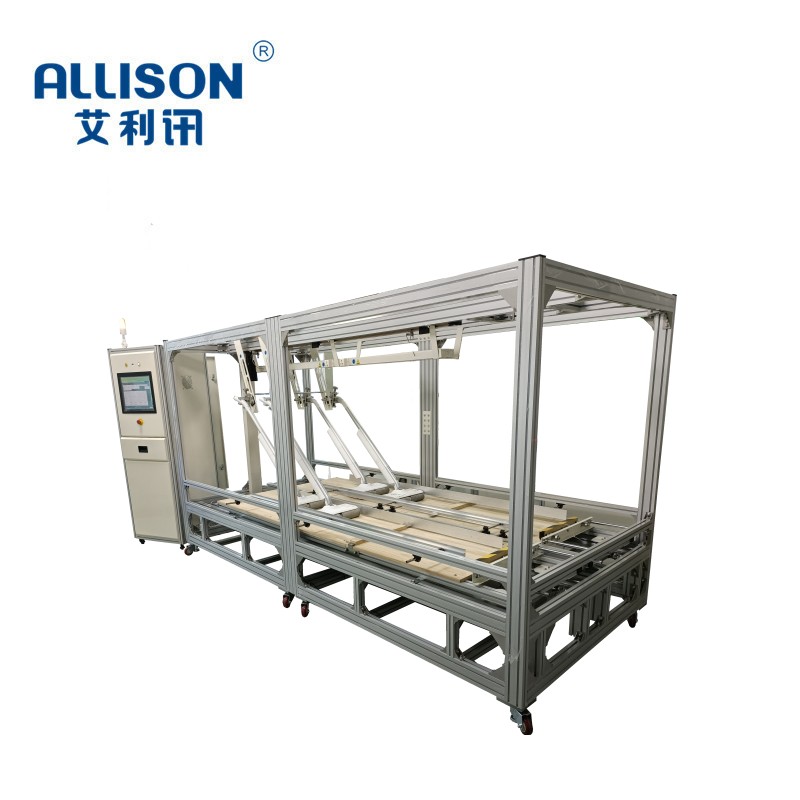

The equipment is mainly used to test the resistance of the floor washer on the carpet and different floor, to test the moving aging, to test the brush impact and to test the threshold. The testing machine is controlled by PLC program, and the actual running life of the washing machine is recorded during the testing process. In the test, the force sensor calculates and records the friction force between the cleaning head and the carpet, and the impact force of the floor brush head. The related test data is exported by USB.

  Test table can be laid carpet, floor tiles, solid wood floors and other simulated floor, with 0 -1 m/s adjustable speed for reciprocating linear movement to complete the aging of the movement, movement resistance, brush head impact, over the threshold and other life tests. And the PLC records the relevant test times, running time, running speed and other parameters.

  Test table can be laid carpet, floor tiles, solid wood floors and other simulated floor, with 0 -1 m/s adjustable speed for reciprocating linear movement to complete the aging of the movement, movement resistance, brush head impact, over the threshold and other life tests. And the PLC records the relevant test times, running time, running speed and other parameters.

Test table can be laid carpet, floor tiles, solid wood floors and other simulated floor, with 0 -1 m/s adjustable speed for reciprocating linear movement to complete the aging of the movement, movement resistance, brush head impact, over the threshold and other life tests. And the PLC records the relevant test times, running time, running speed and other parameters. Testing Parameters

1, test station: 2-4 Test

2, test bed size: 1500 × 600mm; length x width

3, test moving effective travel: 100-1000mm adjustable;

4, test moving speed: 0-1000mm/s adjustable;

5, control mode: PLC + 7-inch Touch Screen

6, test cycle: 0-99999 adjustable;

7, counting range: 0-9999;

8、 power supply: DC: 0-60V 0-30A

9、 force value: 0-200N test accuracy 0.5N

10、 threshold: according to the standard formulation

11、 equipment power: 220V 2.5 kw without power supply

12、 equipment size: 2500X1350X1650 unit MM
