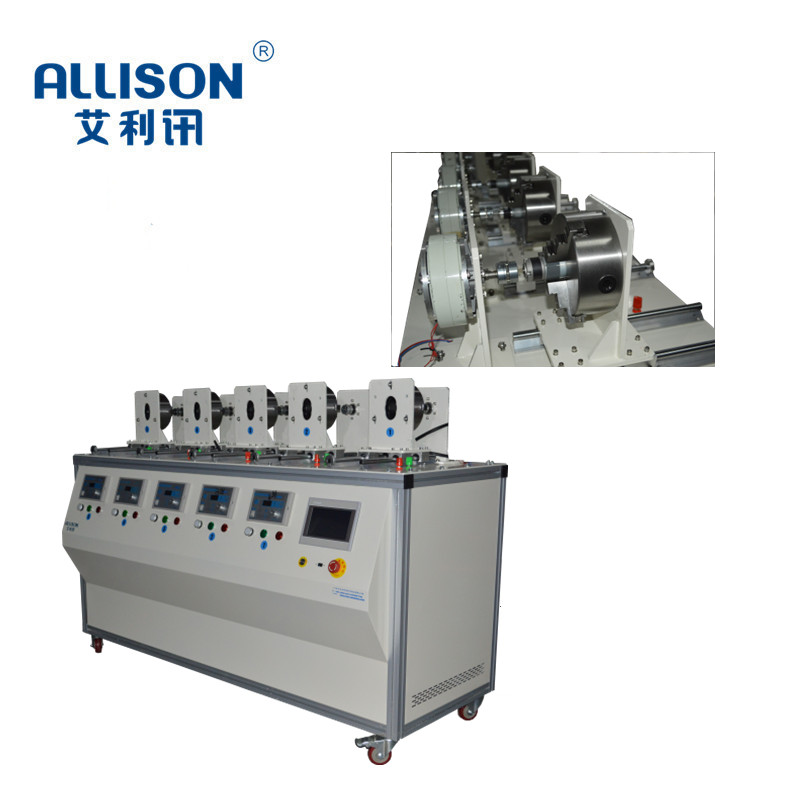

The utility model relates to a rolling brush motor life tester for a floor washing machine, which is mainly used for testing the torsional loading durability of the rolling brush motor. Through the actual simulation of a long time with the condition of aging test, to verify the product life,
    The test machine using PLC program control, the external magnetic powder brake is used to simulate the load test of the tested rolling brush motor. The motor under test was subjected to a long time/interval torsion test with an adjustable load of 0-50Nms. 0-60V to provide independent power supply to each station, and monitor the current and voltage of each station.

The related detection data is exported via USB. The testing machine has the advantages of strong generality, simple operation, convenient control and low failure rate.

Main technical parameters:

1, test station: 1-10 station can choose

2, detection voltage: AC: 0-60V current: 0-20A

3, load load: magnetic powder brake

4, test content: load life test of scrubber motor

5, electric parameters: current, voltage, power, torque,

6, test cycle: 0-99999 adjustable;

7、 Counting Range: 0-999999;

8、 Torque Value: 0-50Nm adjustable

9、 driving mode: DC Power Supply Independent

10、 equipment size: 1500X750X1350 units: MM

11、 equipment power: 220V 1.5 kw without power supply
