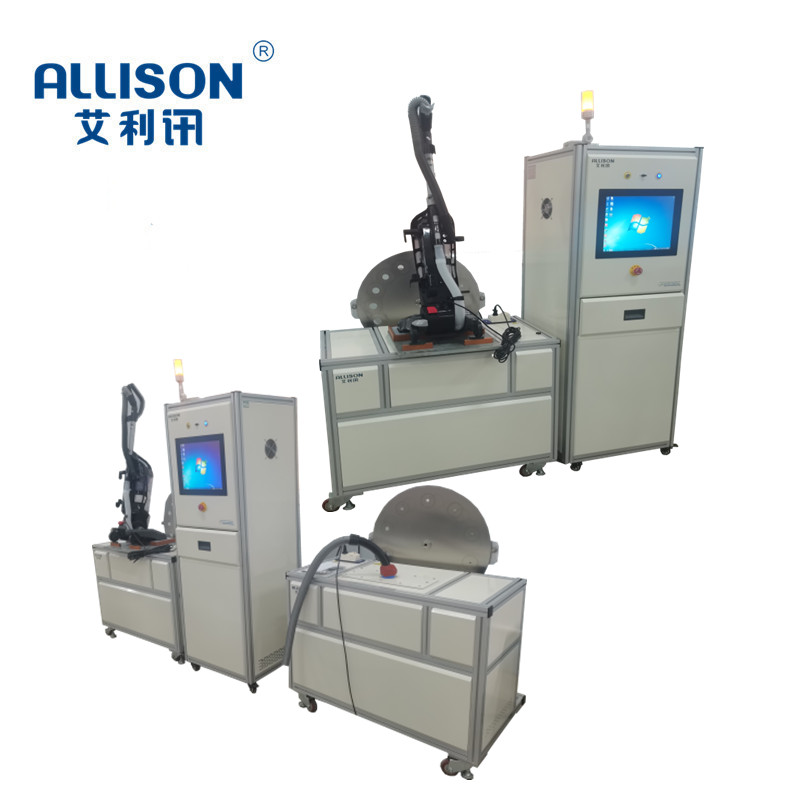

The air data testing equipment of suction-washing integrated floor washer is designed according to IEC60312 standard, which is mainly used to test the performance of suction-washing integrated vacuum cleaner. The test equipment adopts industrial computer and 17-inch display to automatically calculate and collect data, record data, and export and print related test content through USB.

   The test parameters are voltage, current, input power, power factor, suction power, flow rate, vacuum degree and efficiency. According to n standard F431, F558 and European standard IEC 60312 design and manufacture of the integrated performance test equipment. The utility model is suitable for the detection of vacuum cleaners by various vacuum cleaners, floor washing machine manufacturers and testing organizations

Main technical parameters：

1. Test station: Single Station

2. European standard voltage equalizer: 500 x 500 x 500 US standard voltage equalizer: 457.2 X 457.2 x 254 units: MM

3.  Detection Mode: European Standard, n Standard

4. Drive motor: Servo Motor

5.  Flowmeter: (0.5-5) m3/min, accuracy: ± 1%

6. vacuum pressure gauge: -LRB--50-0) Kpa, accuracy: ± 1.

7. accordingniStandarddard Europeanpean standard requiremennican standard for rotating orifice plate, orifice plate series size (mm) : 63.5,57.2,50.8,44.5,38.1,34.9,31.7.28.6,25.4,22.2,19.0, 15.8,12.7,9.5 and 6.3

8.  Power: AC 0-250V DC 0-60V current detection range: 0-30A

9. equipment power: 220V Power: 2.5 kw 10, equipment size: 1850X1150X1750 units: MM
