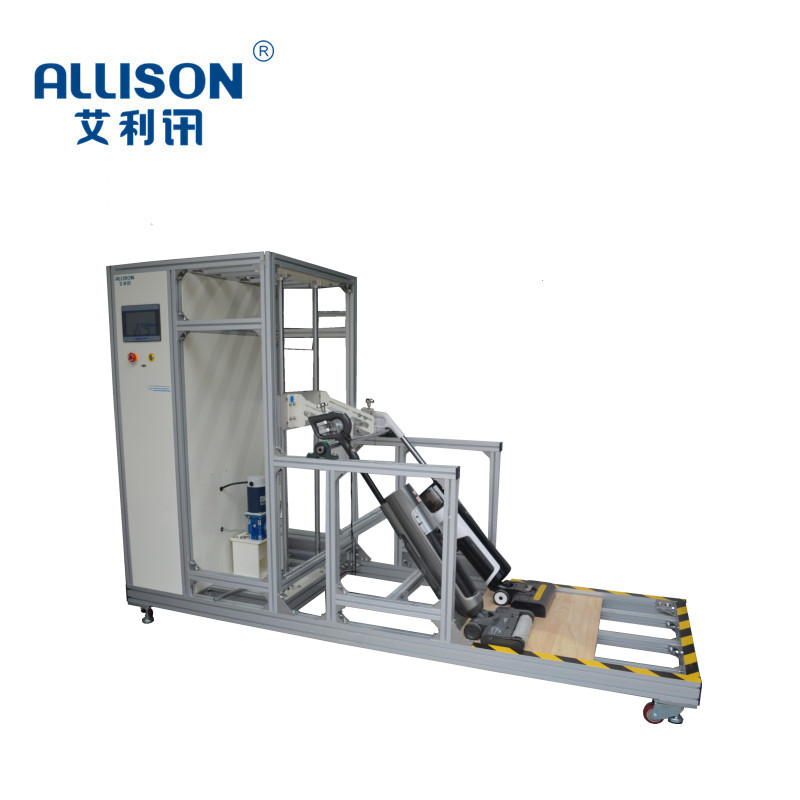

Ground washing machine fishing beat test table is mainly for washing machine, vacuum cleaner and other household electrical products in the handle, brush head, and other parts of the machine comprehensive strength durability life test. The decelerating motor drives the corresponding fixture, clamps and fixes the two ends of the handle in the test, and the servo transmission drives the whole machine to carry on the flapping test. The test bench is controlled by PLC program and related parameters are set and recorded by 7-inch touch screen. The equipment is assembled from aluminum profiles. Powder-coated sheet metal assembly, beautiful and generous. The utility model has the advantages of stable operation, convenient operation, etc. .

Main technical parameters：

1, Drive: Servo Motor

2, fixture action: Chuck Type Fixed

3, flapping angle: 0-80 degrees adjustable

4, Speed: 1-40 r/min can be arbitrarily set

5, times: 0-99999 can be arbitrarily set

6, control mode: PLC Control + 7-inch touch screen display

7, detection station: Unit Test

8, Test Bench Board: Pine Board

9, movement mode: Crank and connecting rod mechanism + Deceleration Motor Drive

10, equipment size 700 × 1500 × 1350 units: MM

11, equipment power supply: 220V 1.5 kw
