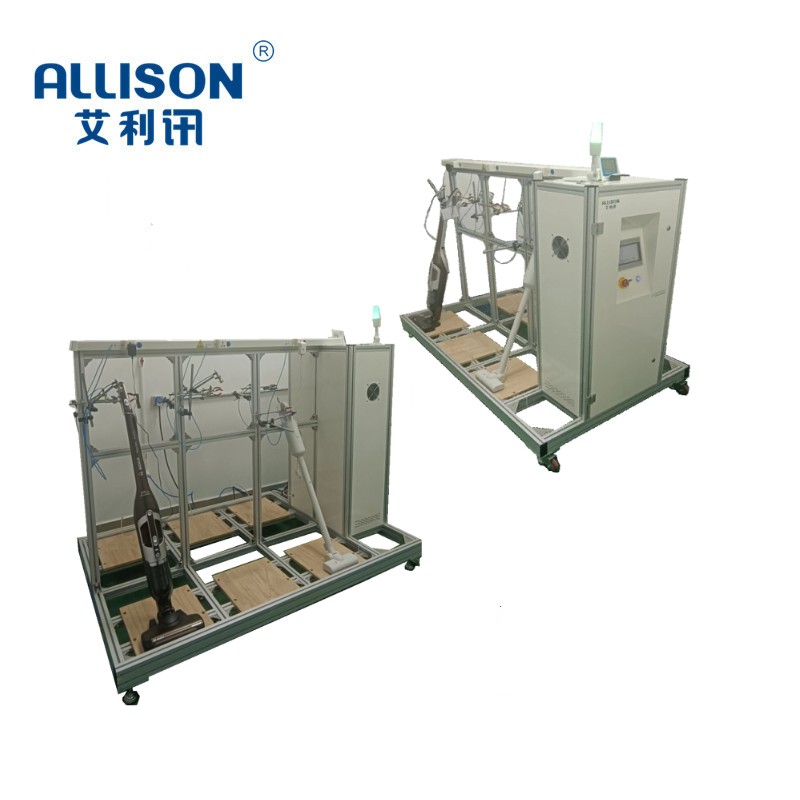

The whole machine charge and discharge life test, suitable for wireless vacuum cleaner, washing machine, cleaning machines and other household appliances products to charge and discharge life test machine. The consumption voltage, current and power of charging/discharging products were monitored by PLC, and the charging and discharging time and testing times were recorded. The testing machine is made of profiles, each testing station is equipped with key start cylinder, vacuum suction detection device. Each work station is equipped with universal socket and fixed clamp hand, through signal collection and measurement of electrical parameters of charging products to charge and discharge switch

   The equipment has the function of automatic shutdown after test and fault alarm, which can realize automatic aging without people on duty. It can greatly improve work efficiency, reduce the hidden trouble of test operation, and improve the speed of test and the accuracy of data.

Main technical parameters：

1, equipment station: 1 -12 stations, optional

2, Touch Screen: 7-inch color touch screen, 1,

3, PLC: Mitsubishi, data power failure memory function;

4. Power supply voltage: 0-300V adjustable DC0-36V adjustable

5, detection current: 0-30A

6, time setting range: 1-9999999h/min/s

7, test times: 1-9999999 adjustable

8, detection function: full machine charge and discharge life test

9, Equipment Power: 220V 2.0 KW

10, equipment size: 1650X1200X1650 MM equipment power: 220V 2.5 kw
