Reference Standard:

GB-T-30306-2013 internal core of domestic and similar uses drinking water treatment

GB 30307-2013 domestic and similar uses drinking water treatment plant

QB domestic and similar uses reverse osmosis purified water

Product description:

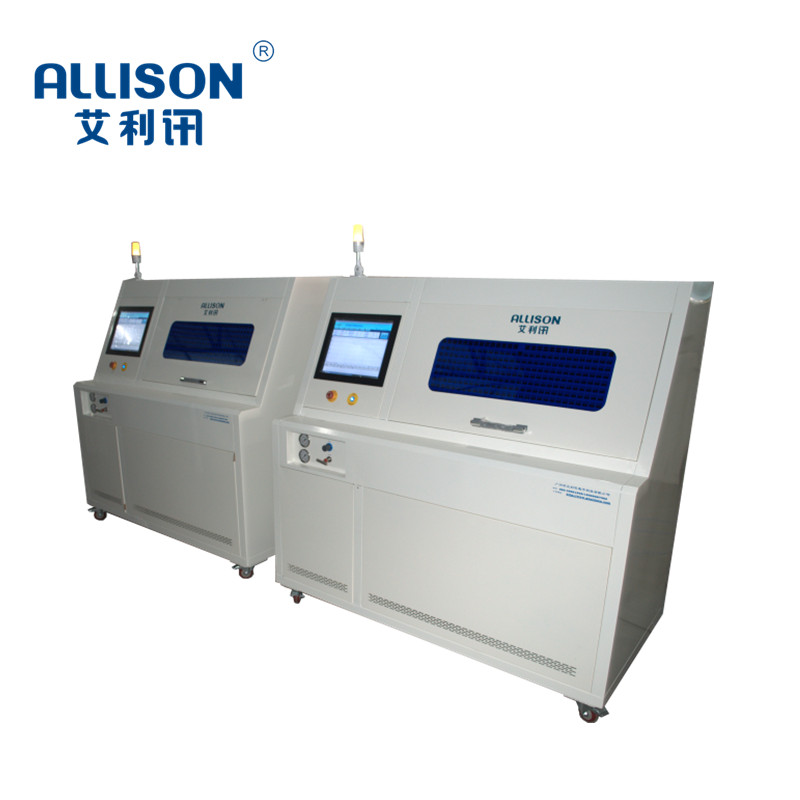

According to the relevant standards, the equipment meets the requirements of water purifier, water products and other products for static pressure, water pulse and other tests, with a maximum of 0.1-1.2 mpa of water pressure on the test products pulse fatigue test machine. It is often used to test whether the voltage withstand test, pulse test and other tests meet the design requirements. The testing machine is controlled by PLC/IPC, and the relevant tests are completed by setting and controlling the relevant parameters.

Main technical parameters:

1. Pulse Pressure: 1-2.5 mpa

2, pressure driving mode: water pump frequency conversion/air pump pressurization

3. Pressure precision: 0.1 grade

4. Maximum rate of pressurization: not less than 0.2 mpa/s

5. Constant pressure time: 1-99999s

6. Cycle Pressure: 0.1-2.5 mpa can be set

7. Cycle Frequency: 6-30 times/min

8. Cycle number: 200,000 times/Test (can be set)

9, 10, water temperature controllable range: 10 ~ 24 degree control accuracy, plus or minus 2 degrees (optional)

10, test medium: tap water

11, control screen: 7 inches, 17 inches optional (with data export function)(optional)

12, water: tap water, gas Source: not less than 0.6 mpa

13, power supply: 220V 50HZ 2.5 kw

14, equipment size: 1850X750X1650MM
