Product description:

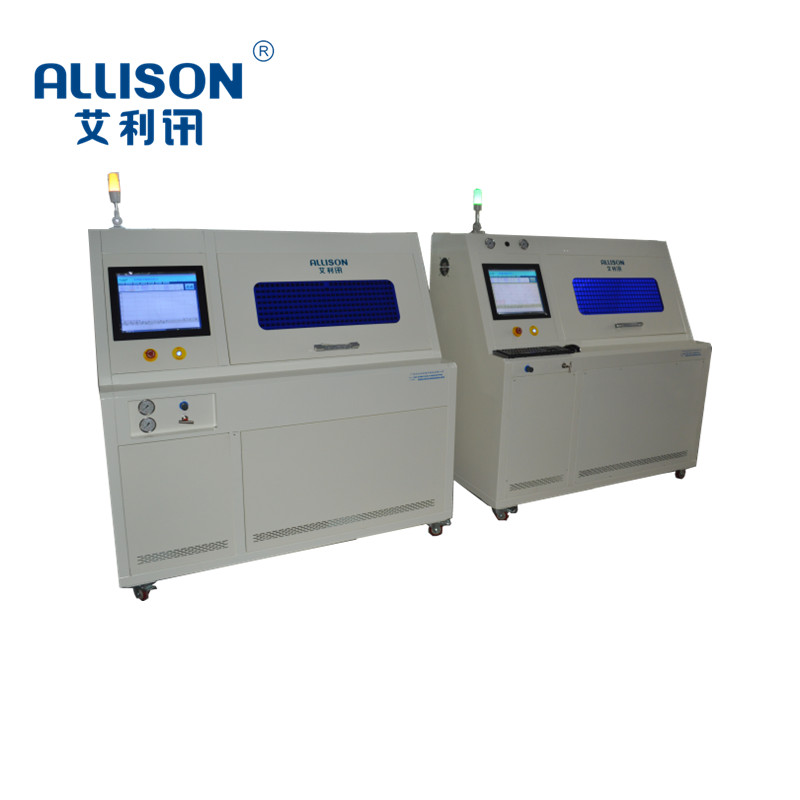

 according to the relevant industry standards, the pulse blasting life testing machine is suitable for home appliance industry, electronic industry, water pump valve body industry, chemical industry and other industries. Equipment to meet the test product voltage test, pulse test, blasting test. Through PLC control, complete the test mode switch, and can record related test data and support USB data export. Test machine than the product of the whole machine pressure, pulse, explosion, sealing whether to meet the design requirements. The life testing machine is controlled by 17-inch PLC/IPC, and the related tests are completed by related parameter setting and control.

Main technical parameters:

1. Pulse Pressure: 1-2.5 Mpa

   2, rupture pressure: 1-10 Mpa

   3, pressure precision: ± 1% accuracy 0.1 grade

   4, pressure-up highest rate: 0.2 Mpa/s

   5, constant pressure time: 1-99999s

   6, Cycle Pressure: 0-2.5 Mpa

   7, Cycle Frequency: 6-30 times/min

   8, Cycle Number: 100,000 times/Test

   9, test route: Static Pressure Blasting 1 route,

   10, display mode: curve/value

   11, test medium: normal temperature tap water (optional water thermostat function)

   12, drive source: water pump + Air Pump

   13, control mode: PLC + touch screen settings, air Source: 0.6 mpa

   14, display interface: 7-inch, 17-inch optional (all with USB data export function)

   15, power supply: 220V 50HZ 3.5 kw

   16, device size: 1850X750X1680MM
