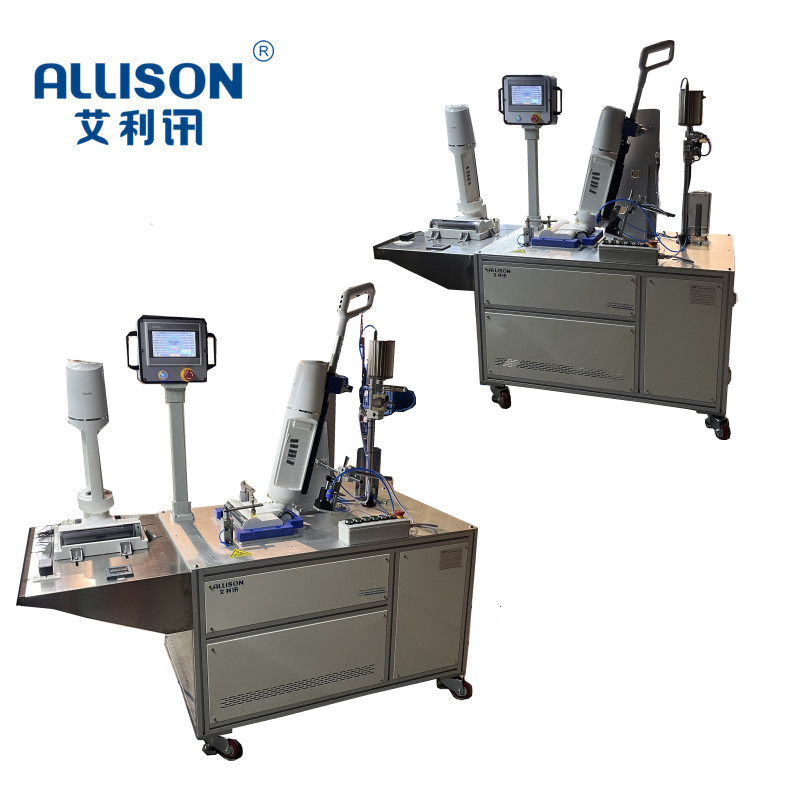

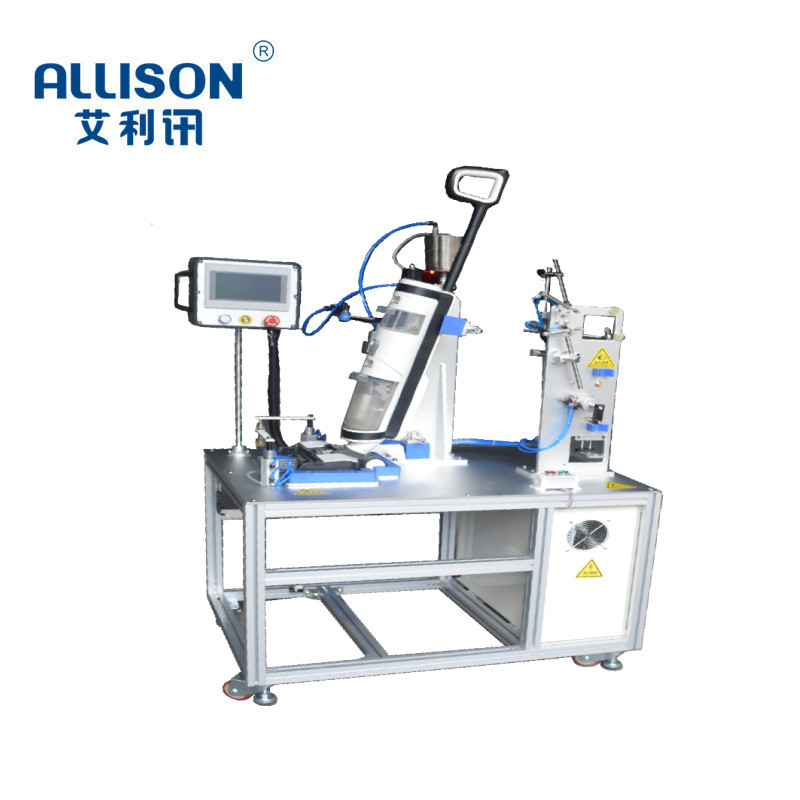

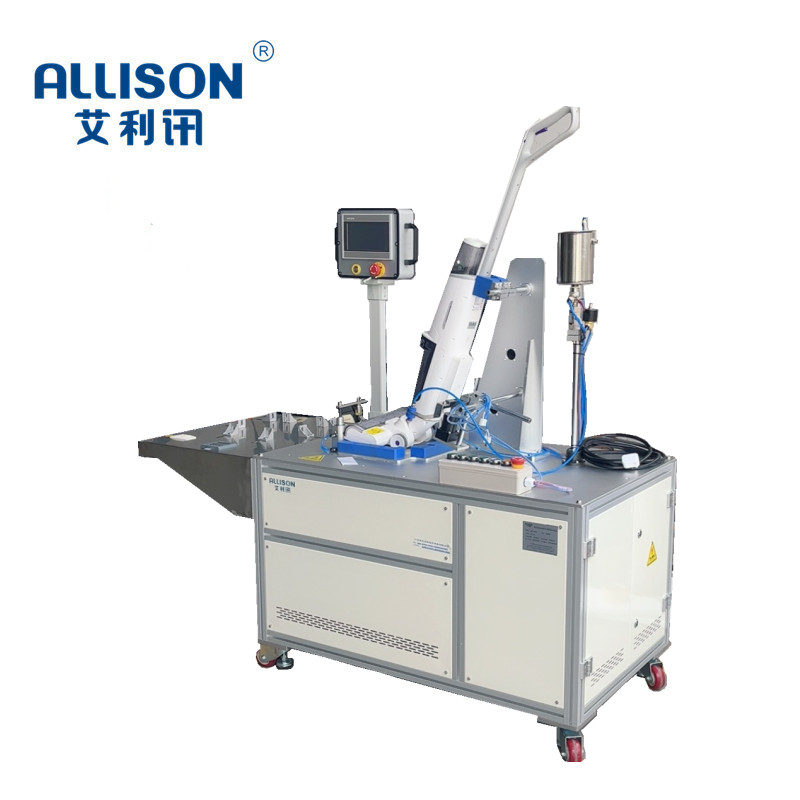

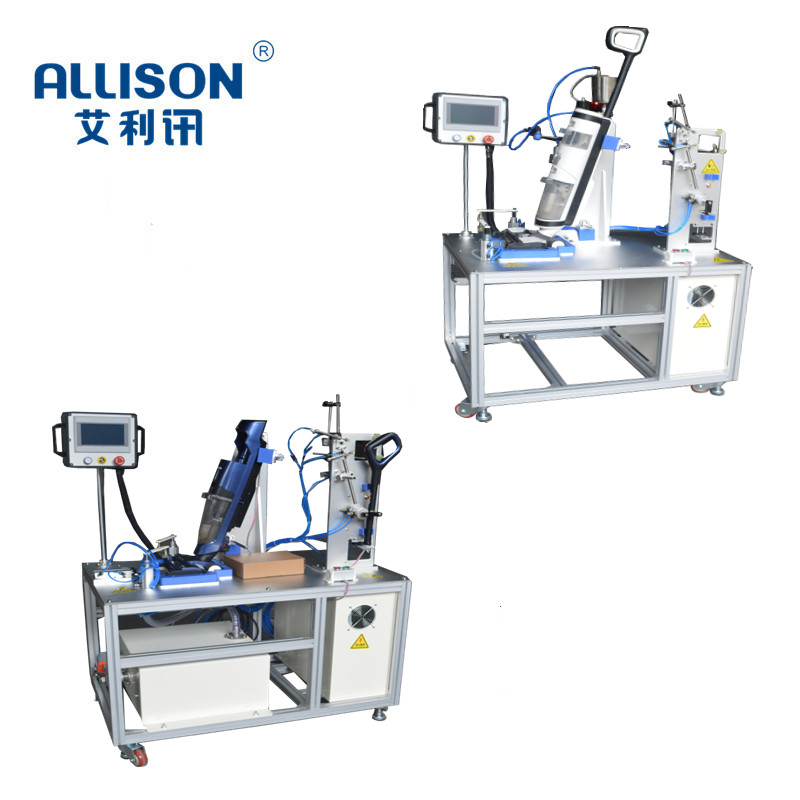

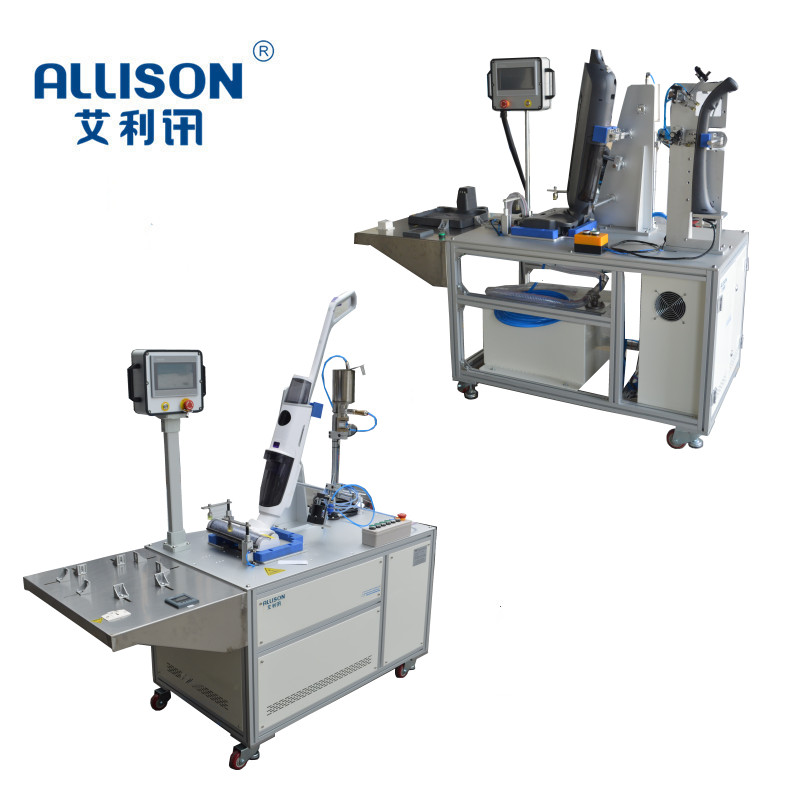

Overview: the suction-washing one-type washing machine on-line flow test for the suction-washing one-type washing machine products on-line comprehensive performance flow test. With the production line rhythm production, the product off-line, PLC control, through the relevant program settings, the washing machine energy-saving mode of water, power mode of water, such as high and low-grade water detection. The electronic counterweight method is used to collect water consumption each time, which effectively improves the data repeatability precision. Through the data collection, the upper and lower limits of the judgment of automatic judgment and related Test Data Records. Full inspection process before. The test platform is controlled by PLC control system developed by our company, with 7-inch touch screen display, automatic test and data acquisition for the whole machine test items of the tested floor washer through the control program, using the method of upper and lower limits of test data, automatic ok-qualified (green light display) , ng-unqualified (red light display-and sound and light alarm) .

1.Test station: Unit Station

2. Size of test bench: W1150 × D660 XH 15500mm;

3. Control mode: PLC + 7-inch touch screen display

4. Detection Mode: Program Detection Mode/single item detection mode (can be programmed) A, water tank detection B, high-grade water washing machine detection C, low-grade water washing machine detection

5. Power supply: 220V 50Hz Power: 1.0 kw
