Overview

1. Implementation Standard: QB/T34454-2017, Chapter 6 IEC 62885-7:2020. Chapter 9 manufacturing.

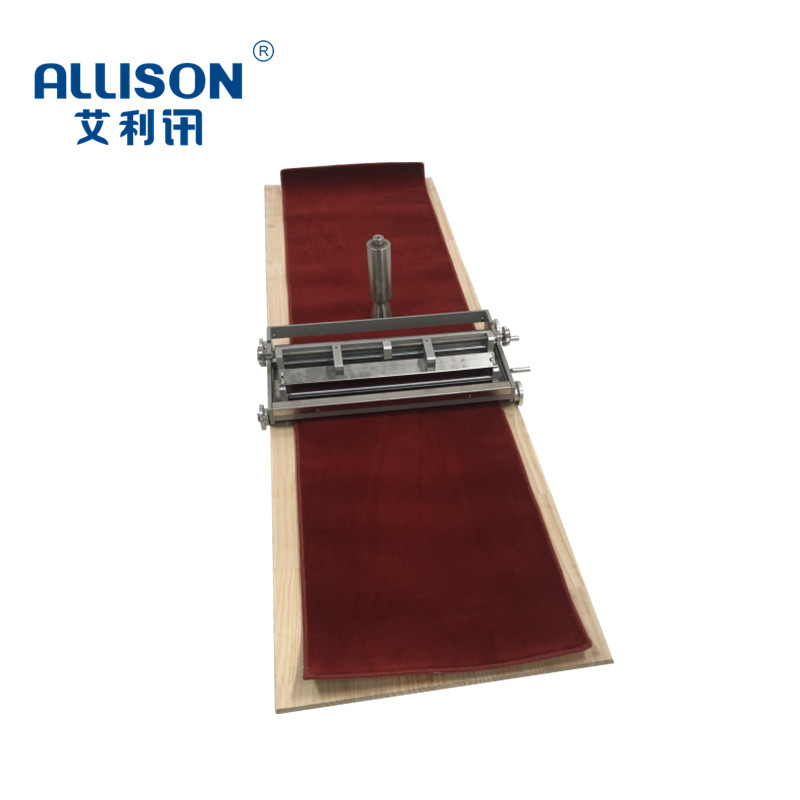

2. The test platform is assembled from 15mm-20mm pine planks without treatment.


3. Test platform size: 2000X600.

4. Test area: 700X cleaning head width (minus 20mm)

5. Wilton standard woven pile carpet 500 * 1000mm (carpet optional

6. Standard Dust:” GB/t 20291.1-2014 dry vacuum cleaners, performance test methods” 7.2.2.2.1/7.2.2.2 clause standard dust, brand DMT or PTI (buy separately)

7. Implementation Standard: QB/T4833-2015, chapter 6 GB/T34454-2017/IEC 2929:2104.

8. The test bench is made of 40X40 standard aluminum profile and test board.

9. The frame is assembled from 15mm-20mm pine planks without any treatment. The size of the inner frame is 2000mm, the inner width is 1150mm, the height of the fence is 300mm,

10. 1300 * 500mm test area

11. Wilton Standard Woven Pile Carpet 2000 * 1150mm (plus)

12. Standard Dust: brand DMT or PTI, supporting dust dust dust cup
