Overview

1.The IEC test room is formulated according to the coverage test room standard of 7.1 items in the relevant standards GB/T34454-2017, IEC 62885-7, T/CAS 378, IEC 62929:2014.

2. The utility model is mainly used for testing the dust collecting ability of the dust collecting robot to cover the accessible area in the prescribed time in the prescribed standard room. By testing the internal layout of the building, installing a wide-angle high-definition camera on top and developing a self-developed visual tracking system to track the movement of objects, real-time monitoring of the position coordinates of moving objects, send the coordinate address to the host computer system, and make the coordinate data collected by the camera deeper. one-step algorithm and embedded depth learning, with high-definition vision camera. Finally, the actual motion track of the moving object is restored, and the track is simulated and displayed. Related test data can be exported via USB.

Major components:

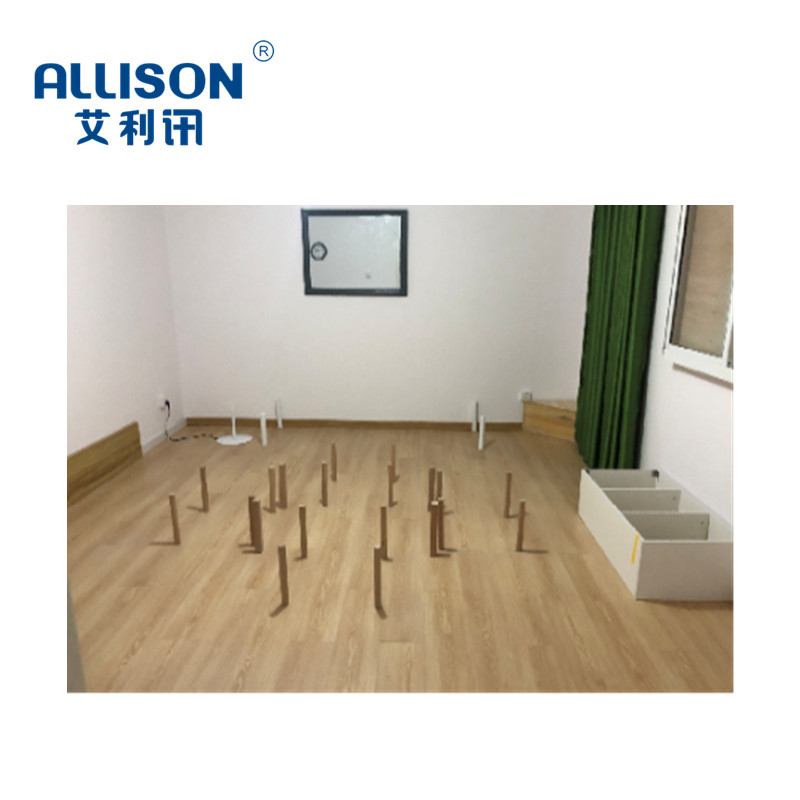

The test area is made up of a room with a dimension of 4m x 5m x 2.5 m (with photos, according to the customer's drawings)  . The building test floor consists of pine board splicing The roof of the house is made of square ceiling decoration . Housing measurement part: housing machine size, (long x wide x high) housing internal lighting, color temperature part . The interior simulation furniture distribution puts the food cabinet, the table, the chair, the sofa, the partition cabinet, the floor lamp, the power cord, the obstacle, the heater substrate floor, the carpet, the grid, presses the line and so on the actual test site simulation article .
