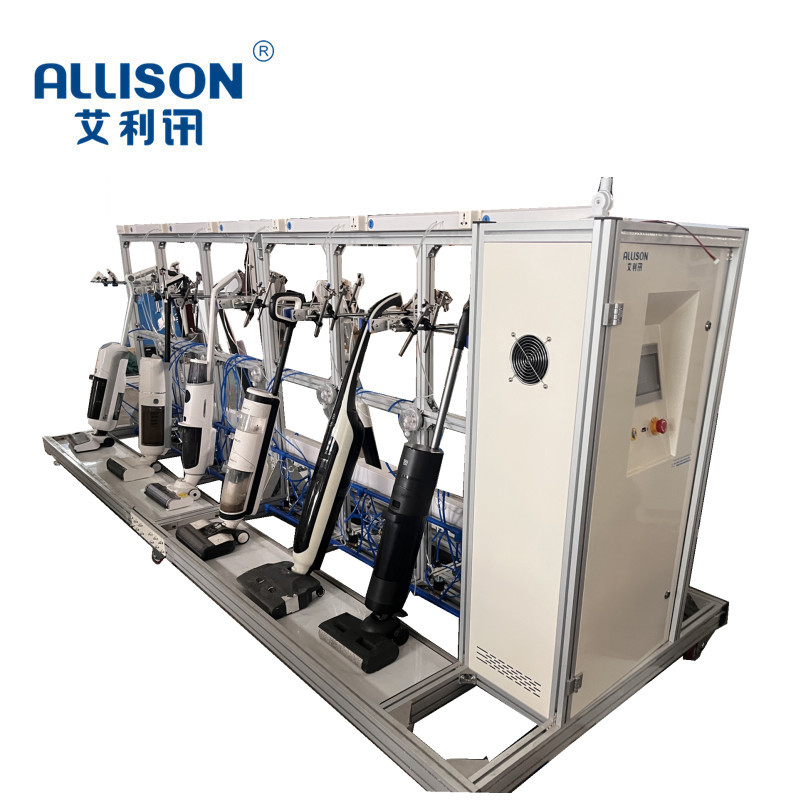

Apply to the production line, the washing machine, vacuum cleaner batteries, sweeper for battery pre-charge use, can also be used to monitor the battery products for a long time and interval charge, discharge test. Through the external program-controlled power supply, the 20-station battery was simulated and actually charged. The aluminum resistance acts as a load to discharge the battery. The testing machine adopts PLC and current acquisition module to take and judge the current change of charging and discharging in 20 channels. The system is developed independently, and the related parameters are set.

 Related technical parameters: 1, equipment station: 20-100 workstation, optional 2, touch screen: 7-inch color touch screen 3, PLC: Mitsubishi, data power outage memory function 4, input voltage: 0-36 V adjustable, output DC0-36V adjustable 5, current detection range: 0-10A 6, DC power supply: 0-36V 300A 7, time setting range: 1-99999 h/min/s 8, charging capacity function: 40% 50% 70% 80% 100% 9, safety protection: Smoke Alarm automatic shutdown function 10, detection function: Battery Life/production line battery pre-charge 11, device size: 1850X750X1650 units MM 12, power supply: 220V 50HZ 4.5 kw
