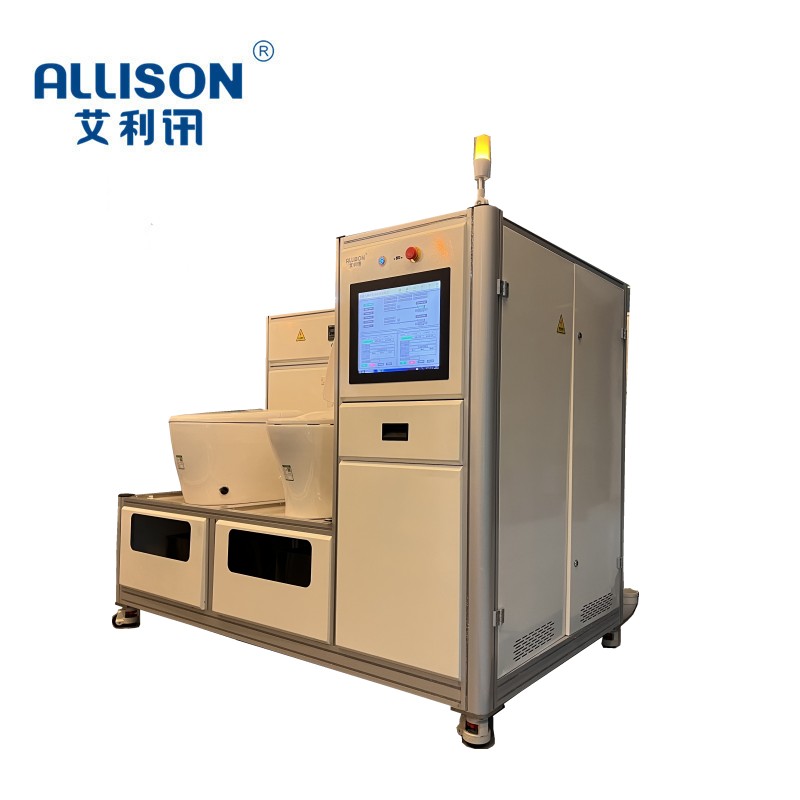

The equipment is suitable for the flushing function test of toilet. The test method is referred to item 8.6.1 in GB6952 -2005  Through the water supply device of the sample and equipment, the function tests such as the flushing amount of sanitary ceramics into the toilet seat and the subsequent water test, the flushing function of the toilet tank and the toilet with the flushing valve, the flushing test of the high-position water tank, etc. .  The test of the product for a comprehensive evaluation of the use of working conditions and whether to meet the relevant design requirements.

Related parameters

1.Pressure range: static pressure: 0.04-0.8 mpa, dynamic pressure: 0.04-0.6 mpa accuracy 0.5

2.The detection range of flushing is 0-100L/min, accuracy is 0.5 grade

3.Power supply: 220VAC, 4.5 kw

4.Water supply temperature: docking customers existing refrigeration units, thermal insulation water tank provided by our company

5.Test Stand: 2500X750X1650 units: MM

6.Control mode: Mitsubishi PLC

7.Monitor: 17-inch touch screen

8.Test data: pressure, flow, time, temperature

9.Work station: 2 bits

10.Weighing method: electronic weighing sensor? The measuring range is 0-30KG and the precision is 0.5 grade
