Reference standards

GB/T34549-2017  Sanitary ware, intelligent toilet

GB/T23131-2019  Electric toilet seats for household and similar use

GB 38448-2019 Limit of energy efficiency and water efficiency for intelligent toilet

CBMF15-2016 Smart toilet

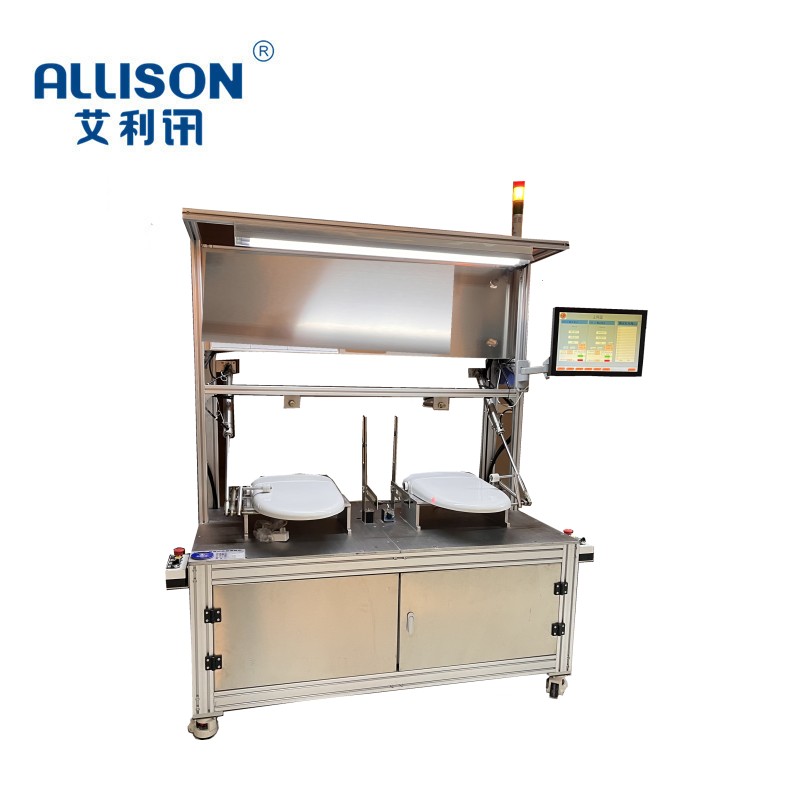

GB/T34549,9.44 mechanical strength test, JCT 764-2008, toilet seat swing test: Toilet seat open and close test; 5.4.6,6.11: Toilet seat drop function life test; 5.4.7,6.12: Toilet seat pressure test and other related standards.  Flip-top life test stand   The utility model is mainly suitable for testing the mechanical strength and installation strength of the intelligent toilet seat cover integrated machine, the separated machine and the hanging intelligent toilet seat, and for testing the durability of the toilet seat, the cover plate and the installation parts of the intelligent toilet seatThe test bench adopts Mitsubishi PLC + 7-inch touch screen control, adopts servo stepping motor as the main power source, and realizes multi-angle open and close cover test.

Main technical parameters:：

1.Test station: 2 -4 station intelligent toilet cover life test station

2.Time Range: 0-99999 seconds

3.Timing accuracy: ± 0.1 seconds.

4.Pressure regulation: pneumatic

5.Set Range: 0-999999

6.Control Mode PLC control

7.Load pressure range: 0-3000N settable

8.Control mode: 17-inch industrial control all-in-one touch screen

9.Equipment size: 1350X850X1860 unit: mm
