Reference Standard:

GB/T34549-2017  Sanitary ware, intelligent toilet

GB/T23131-2019  Electric toilet seats for household and similar use

GB 38448-2019 Limit of energy efficiency and water efficiency for intelligent toilet

CBMF15-2016 Smart toilet

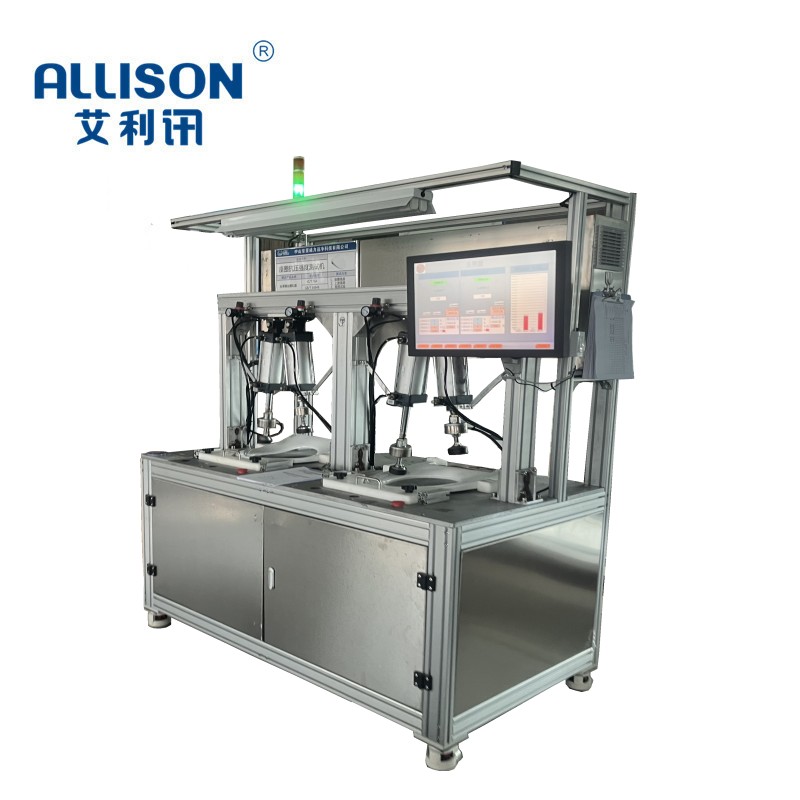

GB/T34549,9.44 mechanical strength test, JCT 764-2008, toilet seat swing test: Toilet seat open and close test; 5.4.6,6.11: Toilet seat drop function life test; 5.4.7,6.12: Toilet seat pressure test and other related standards. The seat ring compressive strength tester is suitable for seat ring strength test and cover plate strength test when the toilet is not connected with water. Through the cylinder driven diameter of 300MM, thick 5MM steel plate to test the cover plate and seat ring for persistent pressure test.

1.Technical parameters

2.Time Range: 0-99999 seconds

3.Timing accuracy: ± 0.1 seconds

4.Pressure regulation: pneumatic

5.Number of times set range: 0-999999 times

6.Control Mode PLC control

7.Load pressure range: 0-3000N settable

8.Control mode: 17-inch industrial control all-in-one touch screen

9.Equipment size: 1350X850X1860 unit: mm

10.Power: 220V 2.2 kw
